Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 3000 Kg |
| Advantage: | High Production | ||
| High Light: | Laboratory Plate Vulcanizing Press,25T Water Cooling Plate Vulcanizing Press,50Ton Vulcanizing Press Machine |
||
Lab Vulcanizing Press Machine 25T/50T/80T
Factory Sales Lab Rubber Compression Molding Machine is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature, make the material shaping, testing and serving as the basis for the ingredient of mass production.The curing press mainly works for clampdown the rubber ,which can be used as normal hydraulic machine .
1.Material of steel plate:
We use hight quality carbon steel Q-235,after shot blasting ,smooth, it is strong enough than common steel
2.Weldment of frame : world technique
Welded together as a whole part,Stewing fire treatment after weldment.
(Carbon dioxide gas shielded welding,alloyed welding wire).
Submerged arc welding, VSR treatment after weldment.
3.Piston:
The material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.
4.Heating way&precision temperature control:
Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity) range of temperature:0-300°C (can be adjustment if you need 400 °C ,we can do it )
Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C
Also we can produce the machine with water cooling system.
5.Hydraulic system: (PLC control)
The professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.
We use OMRON,SIMENS CHNT , SCHNEIDER etc brand electric parts.
Parameters:
| Capacity | 10T,20T,30T,50T |
| Temp. Range | Room temp. ~300℃ |
| Controller | Digital |
| Temperature accuracy | ± 2 °C |
| Heating method | electric heating tube |
| Platen size | 300 × 300 × 40mm (or customize) |
| Platen distance | 80mm |
| Working layers | 1 layer or 2 layer ( Depends on Customer’s request ) |
| Cooling method | water cooling, the system will automatically switch to the cooling program immediately after the heating process and cool at full pressure (without mold opening) (customer-owned water source connection) |
| Power | 8KW |
| Volume | 900×500×1450(W×D×H)mm |
| Power | 3 phase, AC380V, 20A three-phase five-wire (customers need |
| Weight | about 740kg |

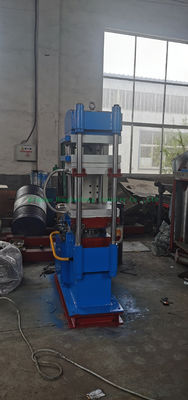

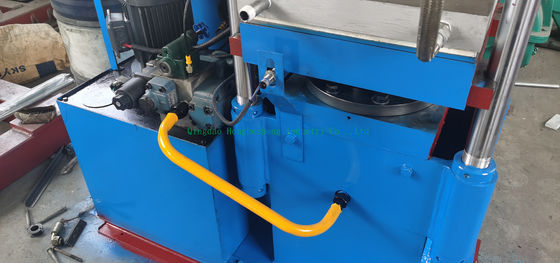

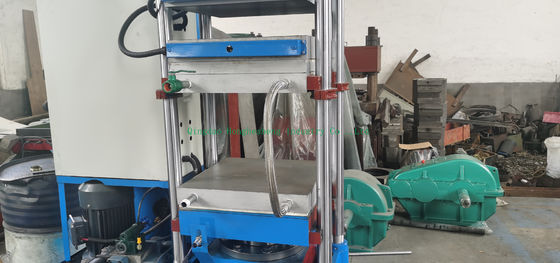

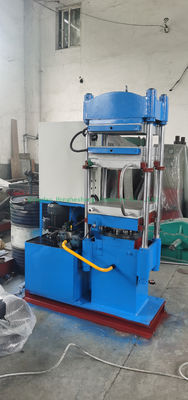

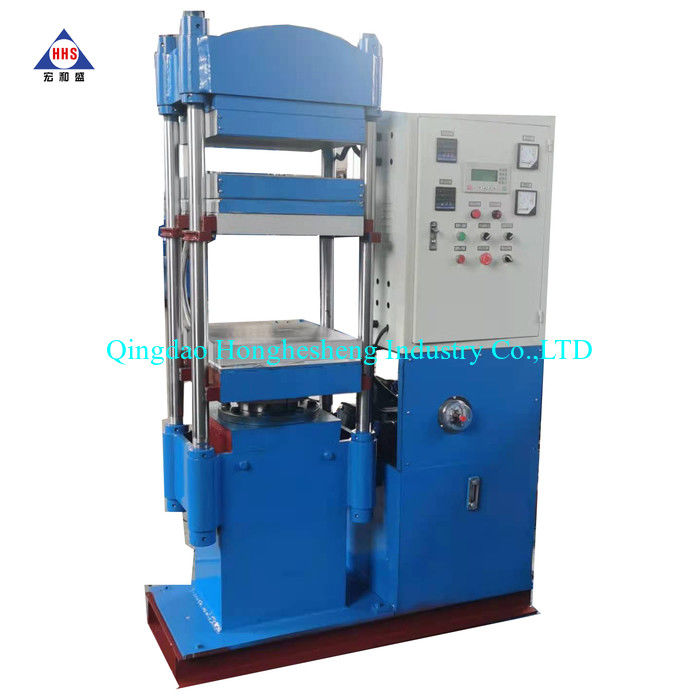

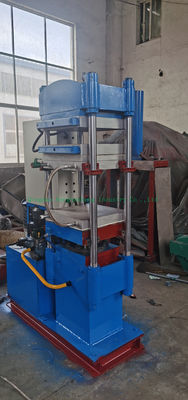

Machine Pictures
why choose us:
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small,which ensure pressure.
3 our vulcanizing press is equiped with PLC system. automatic controling temperature and pressure, automatic alarm, automatic loading ,emergency stop ,digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature difference: ±1°C, which follows the national standard.
6 the parallelism differnce does not exceed ±0.01-0.02mm
7 hot plate use high quality carbon steel Q-235 material.
7 heating method according to your request : electricity , steam heating , conduction oil heating .
8 we can make machine according to the your request.
9 we can give a good discount according to your quantity
