Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Video Outgoing-ins: | Provided | Warranty: | 3 Years |
| Core Components: | PLC, Engine, Gearbox, Motor, Gear, Pump | Dimension(L*W*H): | 3500*3200*2800mm |
| Certification: | ISO9001:2008/CE | Weight (KG):: | 8000 Kg |
| Applicable Industries: | Rubber Machine | Roll Material: | Chilled Cast Iron |
| High Light: | 4 Roll Rubber Calender Machine,Rubber Coating Four Roll Calender Machine,Cast Iron Roll Rubber Calender Machine |
||
1. Tailored structure, easy to operate and install.
2. There are many speeds and speed ratios available, which can satisfy most customers’ formula and technique requirements.
3. Frame and base., looking very nice, are welded and treated by annealing for stress relieving.
4. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
5. Perfect emergency stop device can ensure the safety of person and equipment
6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil
7. The calendar is equipped with rolling bearings.
8. The roll is made of chilled cast iron alloy (LTG-H), equipped with rotating joint. Its surface finish is over Ra0.8.bored and drilled rolls are optional.
9. Friction gear with single output axle adopts herringbone gear, rotating stably.
10. Full range of bending deflections is optional including middle height, inflection and axis crossing.
11. Different control systems are available to customers, including bus-mastering system, PLC control system and general control system.
12. Driving structure with single output axis takes the place of big and small driving gears.
13. The flexible design system can satisfy customers’ special design requirements within the shortest time.
14. Can as per customer requirements, equip various accessories, composing combined product line.
We're just more professional than the others,nothing else~
Same price, higher configuration.
So~~ Why not contact us?

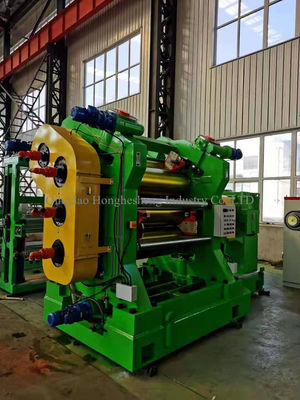

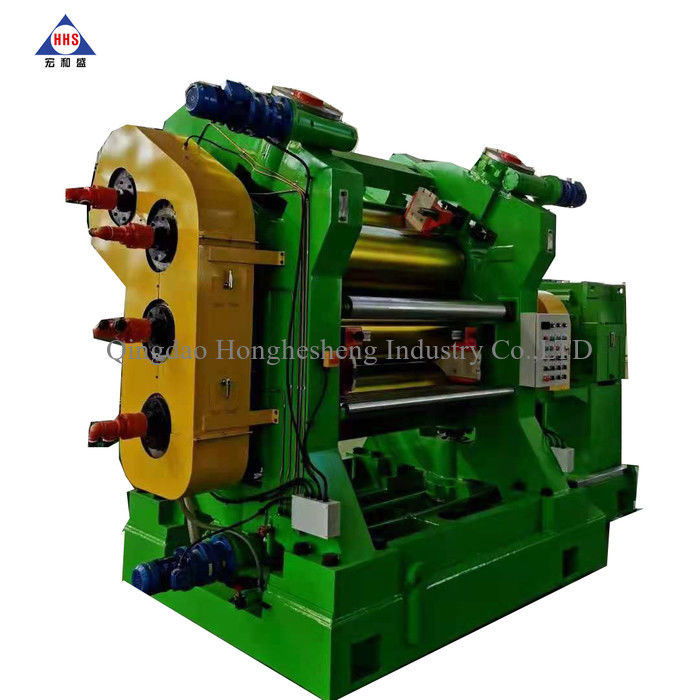

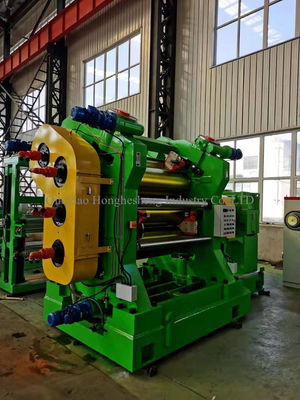

Four Roll Rubber Calender Machine
Usage:
This calender machine is mainly used for cord, canvas and fabric frictioning cord single or double-coating with one time connectively as well as stock sheeting etc.
Technial Specification:
|
Model Item |
XY-4I 630 XY-4L 630 XY-4630 |
XY-41120A | XY-41400 | XY -41500 | XY-41730 | XY-42130 | XY-42430 | |
| Roller dia | 230 | 360 | 400 | 450 | 610 | 710 | 810 | |
| Roller wording length | 630 | 1120 | 1400 | 1500 | 1730 | 2130 | 2430 | |
| Roller ratio | 1:1:1:1 | 0.73:1:1:0.73 | 1:1.38:1.38:1 | 1:1.5:1.5:1 |
1:1.4:1.4:1 1:1.4:1.4:1.4 |
1:1.5:1.5:1 | 1:1.5:1.5:1 | |
| Middle roll linear speed | r/min | 2.1-21 | 2-20.1 | 3-26.3 | 2.5-25 | 8-50 | 3-30 | 2-20 |
| Adjusting range | 0-10 | 0-10 | 0-10 | 0-6 | 20 | 0-20 | 0.5-25 | |
| Min.calendering product thickness | 0.2 | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 | ±0.1 | |
| Calendering product width | 100-500 | 500-920 | 1200 | 1250 | 1500 | 1900 | 2150 | |
| Motor power | kW | 15 | 55 | 75 | 110 | 160 | 185 | 280 |
|
Overall dimensions
|
L | 3300 | 6600 | 6500 | 6580 | 7010 | 9800 | |
| W | 940 | 1620 | 1970 | 2460 | 4150 | 4260 | ||
| H | 2350 | 2490 | 2740 | 2920 | 3730 | 5720 | ||
| About weight | t | 4.8 | 14.6 | 18.6 | 33.5 | 62 | 100 | 126 |
Detailed Pictures
