Product Details:
|
| Type: | Vulcanizer | Colour: | All Colour |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 2.2kw |
| Temperature: | Max 300 Degree | Plates: | 300-2100mm |
| Hot Plates Material: | Q-235 Material. | Heating: | Electricity , Steam Heating , Conduction Oil Heating . |
| Weight: | 5000 Kg | ||
| High Light: | C Type Vulcanization Press Machine,Hydraulic Rubber Vulcanization Press Machine,2.2kw Hydraulic Plate Vulcanizing Press |
||
Rubber vulcanizer is used for vulcanizing all kinds of rubber and plastic mould products, and non-mould products. Being frame type, the machine is different from the column type , it is allowed to install larger diameter hydraulic cylinder, reducing the quantity of cylinders, with simple structure, and little maintaince wok. The frame can bear more stress and it has cheap price, nice surface, easy to operate.
Technical Parameters
| Model | Total Press(MN) | Heating Plate Size(mm) | Plates Daylight | Working Layer No. | Piston Stroke(mm) | Hydraulic Cylinder Diameter(mm) | Hydraulic Cylinder No.(group) | Open Mould Speed(mm/s) | Close Mould Speed(mm/s) | Hydraulic System Pressure(Mpa) |
| XLB-600*6200*1 | 11.20 | 600*6300*1 | 200 | 1 | 200 | 400 | 6 | >=12 | >=12 | 16.4 |
Frame vulcanizing press advantages:
1 Simple and convenient structure ,flexible operation,commodious space.The cylinder and plunger are made up of high –quality materials.
2 Hydraulic station and electric cabinet are Located in both sides of the main engine.
3 Conveniently operated.
4 Without oil spilling or off pressure.
5.Excellent reputation .
6 CE Standards

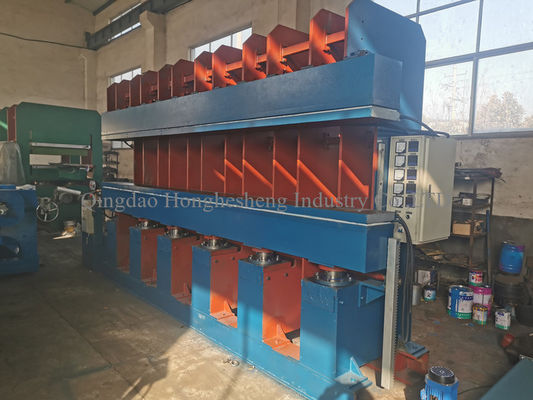

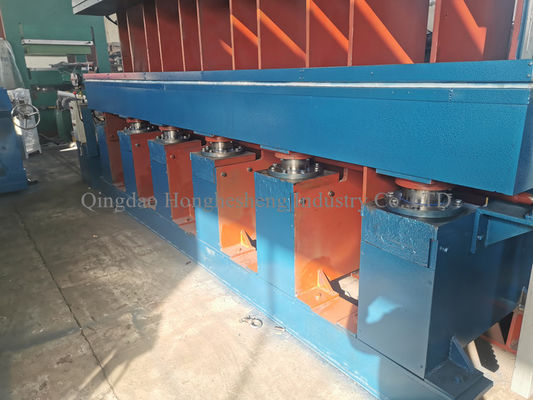

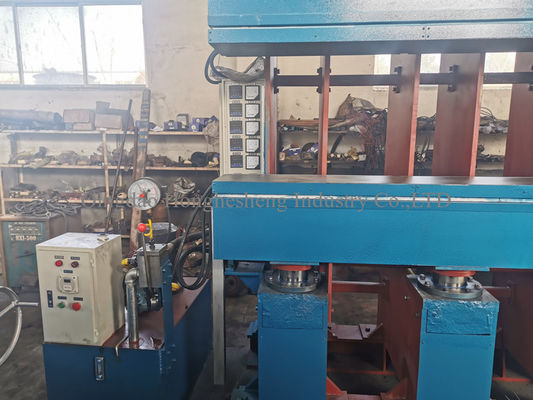

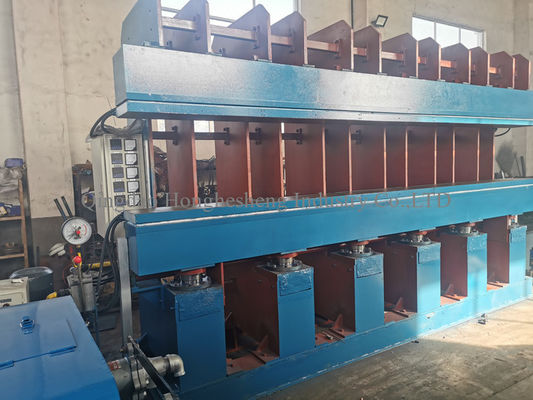

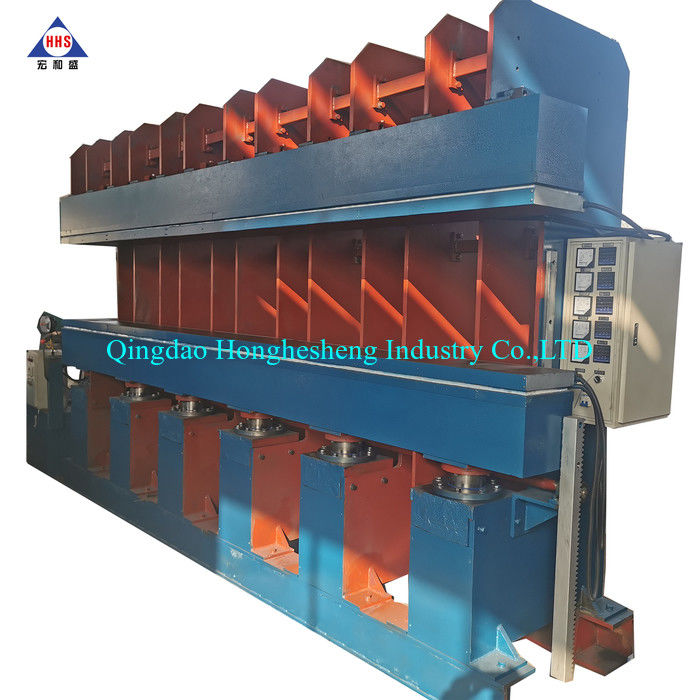

Detailed Pictures
Machine can be different colour
