Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 90kw~200kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customer Request |
| Name: | Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant | Capacity: | More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h |
| Year: | New | Product Name: | Rubber Tire Recycling Machinery |
| Function: | Tire Powder Making Machine | Raw Material: | Waste Tire Scraps |
| End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
| High Light: | Rubber Crumb Line Rubber Cracker Mill,Old Tyre Rubber Cracker Mill,Rubber Crumb Line 90kw |
||
Cracker mill
This machine is used for breaking, plasticating and mixing of rubber materials.
| 1. Type | XK-560 | XK-610 |
| 2. Grooved roller dia. | 560mm | 610mm |
| 3. Smooth roller dia. | 510mm | 560mm |
| 4. Working length of rollers | 860mm | 1000mm |
| 5. Motor power | 110KW/132KW/160KW | 160KW |
| 6. Speed reducer | ZSY series hardened teeth reducer /YJY09/LH1000-53 | ZSY series hardened teeth reducer /YJY09/LH1000-73 |
| 7. Roller support type | Bearings | Bearings |
| 8. Machine weight | Around 20 ton | Around 25 ton |
| 9. Production capacity | Around 900kg/hour | Around 1100kg/hour |
Assist equipment: power assembly, big & small vibrating screen, big & small conveyor, magnetic separator, rubber power cooling, and tire lump storage etc.
Usage:
Mainly used to grinding waste rubber , tire , tube , flap and break the raw rubber materials.
Structures:
It consists of motor, gear-down reducer, driving gears, speed-ratio gears, front and back rolls, bearings, frame, cover, bed plate, adjusting pin device, emergency stop device, roll temperature adjusting device, lubricating device and material plate, etc.
Features:
1. The roll is made of chilled cast iron of vanadium and titanium alloys. (Rolls of G model are made of high grade steel with hard alloy welded on the surface.)
2.The roll face is hard and anti-wear. Both the front roll and the back roll are fluted. The internal cavity of the roll is processed to ensure temperature well proportioned on the roll surface.
3.The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.
4.By LTG rollers - cold hard cast-iron security, its surface hardness is made, 68 ~ 75 HS grinding and smooth surface. Inside the hollow cylinder for use, can according to the requirement, the steam and cooling water is used to regulate the temperature of the rolls. Two rolls with different relative rotation speed, rubber roller into two broken sewing machinery in the process.
5.The machine is also equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately.

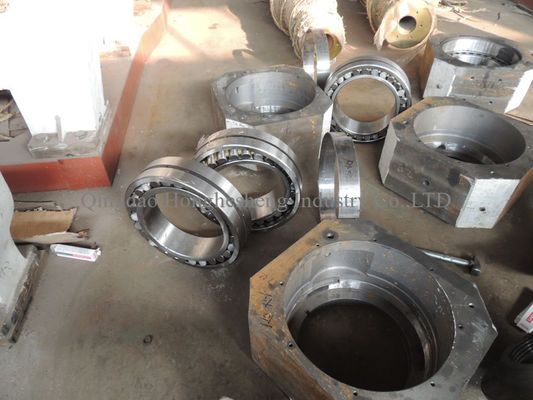

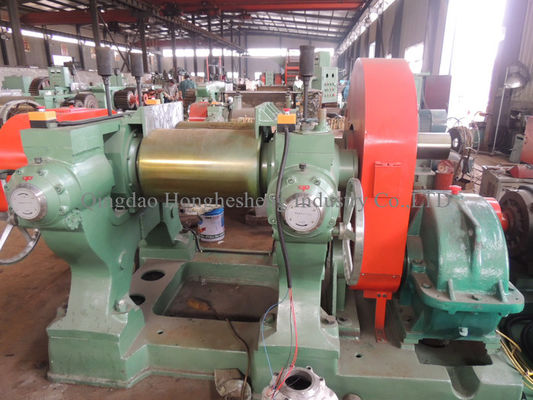

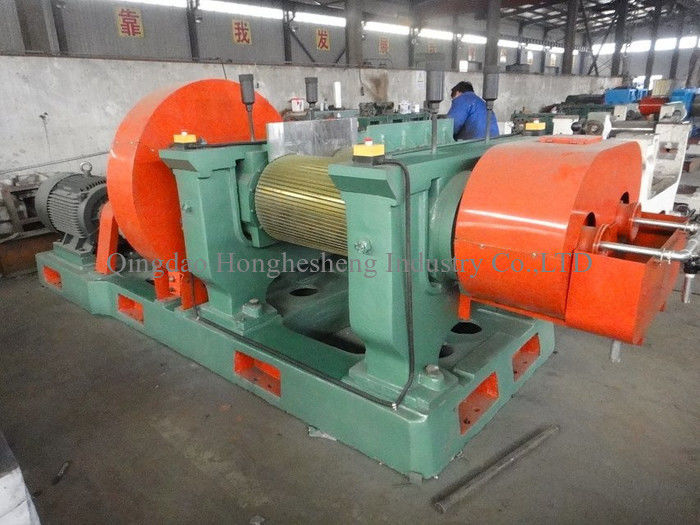

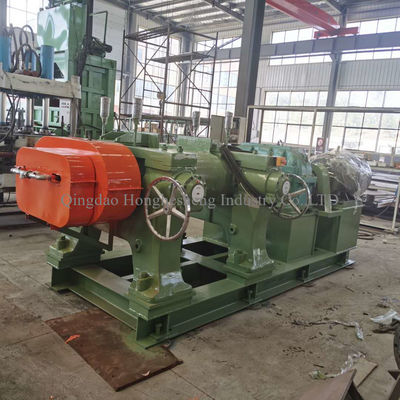

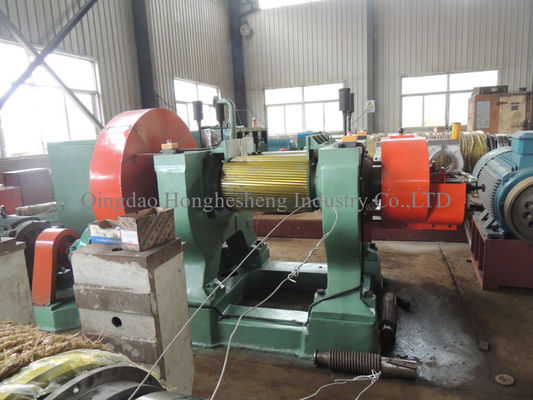

Detailed Pictures
