Product Details:
|
| Type: | Vulcanizer | Colour: | All Colour |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 30KW |
| Temperature: | Max 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | ||
| High Light: | Electric Plate Vulcanizing Press Machine,Electric Frame Type Vulcanizing Press Machine,Rubber Conveyor Belt Repair Vulcanizing Press |
||
Rubber conveyor belt joint machine is mainly applied to industries for splicing and repairing for conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry , tobacco ,and food automatic line field.
1.Machine Maximum size: from 300MM-6000MM;
2.Voltage: 220V 380V 415V 660V 50HZ;
3.Fast Cooling time: 15 minutes (from 145 degrees down to 70 degrees or less);
4.Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 25 minutes;
5.The temperature difference of sulfide surface: ±2°c.
6.Temperature adjustment range: 0~300°c.
7.Vulcanizing pressure: 0~2.5 MPa (details refer to users' specifications and factory markings);
8.Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;
9. Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;
10. rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.
11. Users could order spare electric pumps additionally according to requirements.
Model for Choice( or Just me your belt size, belt type)
Technical parameters:
|
Model
|
Size of heating plate LxW(mm)
|
Width of rubber belt to be joined-up(mm)
|
Total Power(KW)
|
Weight of heaviest part(Kg)
|
Overall dimensions LxWxH(mm)
|
Total weight(kg)
|
Completed equipment
|
|
|
Hand pump
|
Control box
|
|||||||
|
DRJL-650
|
(720)830× 838
|
650
|
4
|
45.5
|
1142×830×750
|
445
|
1
|
1
|
|
DRJL-800
|
(930)830× 1028
|
800
|
7.2
|
53.8
|
1320×830×750
|
550
|
1
|
1
|
|
DRJL-1000
|
(1120)830× 1188
|
1000
|
8.4
|
60.5
|
1440×830×750
|
625
|
1
|
1
|
|
DRJL-1200
|
(1360)830× 1458
|
1200
|
10.8
|
69.3
|
1680×830×750
|
795
|
1
|
1
|
|
DRJL-1400
|
830×1638
|
1400
|
11.4
|
78.8
|
1950×830×750
|
911
|
1
|
1
|
|
DRJL-1600
|
830×7808
|
1600
|
13.2
|
89.7
|
2060×830×980
|
1056
|
1
|
1
|
|
DRJL-1800
|
830×2078
|
1800
|
15
|
98.3
|
2320×830×980
|
1198
|
1
|
1
|
|
DRJL-2000
|
830×2328
|
2000
|
16.8
|
107.4
|
2582×830×980
|
1315
|
1
|
1
|
|
DRJL-2200
|
830×2508
|
2200
|
18
|
130.5
|
2842×830×980
|
1422
|
1
|
1
|

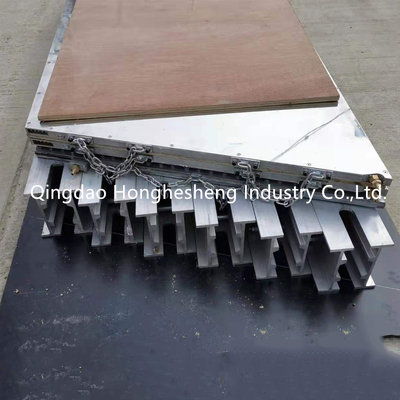

Pictures
