Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Batch Time(times/hour):: | 10 Times/hour | Total Capacity(L): | 50L |
| Marketing Type: | New | Warranty: | 3 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pum | Brand Name: | HHS |
| Voltage: | Customer's Request,380V/50HZ | Power(w): | 55KW |
| Type: | Rubber Kneader,Electric Heating Water Cooling | Color: | Orange,Blue Or Green,customized |
| Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Weight: | 6500KG | Dimension(l*w*h): | 3200x1900x2950 |
| High Light: | Rubber Kneader Mixer Machine,50L Rubber Kneader Mixer Machine |
||
The machine is suitable for EVA, various foam rubber sole,TPR, rubber role ,spongs, tires, sportsLall rubber rings, oil seal,shock-proof tape, master batch , ink, various types of automotive rubber products,chemical mixed raw materials.
The machine contains auto temperature control system that easy to operate. The mixing can achieve the bestdispersion and uniformity effect, closed type mixing .The machine provides an excellent quality of mixture whileavoiding environmental pollution,the machine is durable,low failure rate.
A. Basic information:
For masticating and kneading natural rubber, synthetic rubber, EVA or PVC
pellets with various kinds chemical material and warming the cold material
which shall be supplied to the calender, embossing calender or hot presses.
B. Machine Parameters:
| Kneader mixer | X(S)N-5 | X(S)N-20 | X(S)N-35 | X(S)N-55 | X(S)N-75 | X(S)N-95 | X(S)N-110 |
| Mixing capacity (L) | 5 | 20 | 35 | 55 | 75 | 95 | 110 |
| Actuating motor (kw) | 7.5 | 37 | 55 | 55/75 | 90/110 | 132 | 160/200 |
| Turnover motor(kw) | 0.75 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 5.5 |
| Turnover angle (º) | 110 | 110 | 140 | 140 | 140 | 140 | 140 |
| Air compressor motor (kw) | 1.5 | 3.0 | 5.5 | 7.5 | 11.0 | 15.0 | 15.0 |
| Dust cleaner | HLL-10 | HLL-10 | HLL-10 | HLL-15 | HLL-20 | HLL-30 | HLL-30 |
| Water cooling(Rubber refining) Mpa | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Steam heating(Plastic refining) Mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Electrical heating(Plastic refining) KW | 4 | 9 | 12 | 15 | 18 | 24 | 24 |
| Weight (kg) | 1200 | 4500 | 6500 | 7800 | 10500 | 12500 | 14500 |
| Dimension (LXWXH) (mm) |
1900x950 x2400 |
2600x1400 x2600 |
3200x1900 x3000 |
3500x2600 x3300 |
3900x2900 x3400 |
4000x3200 x3700 |
4100x2900 x3800 |
C. Advantages:
1.Maximum Dispersion & High Production
Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
2.Super sealing,no powder leakages.
Both sides of the rotor blades are injected welding a iron alloy ring, which assures sealing and protects the blades from abrasion.Imported bakelite sealing ring,which make super sealing.The chamber around are designed with groove,then embeded with rubber stip,this make sure the whole mixing chamber is well sealed.
3.No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.
4.Easy Cleaning & Colour Change
Mixing chamber can be tilted down for 140degree, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.
5.Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.
6.Short Mixing Time
Mixing time ranges from 6 to 12 minutes depending on compound's specific gravity.

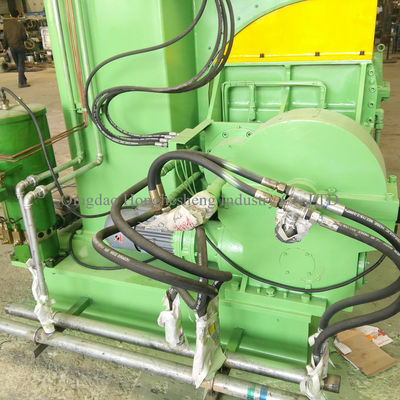

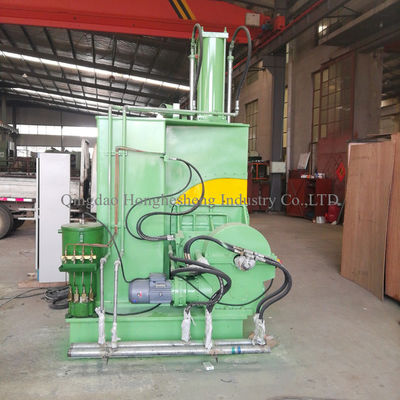

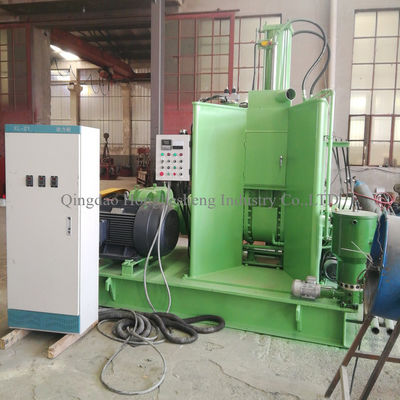

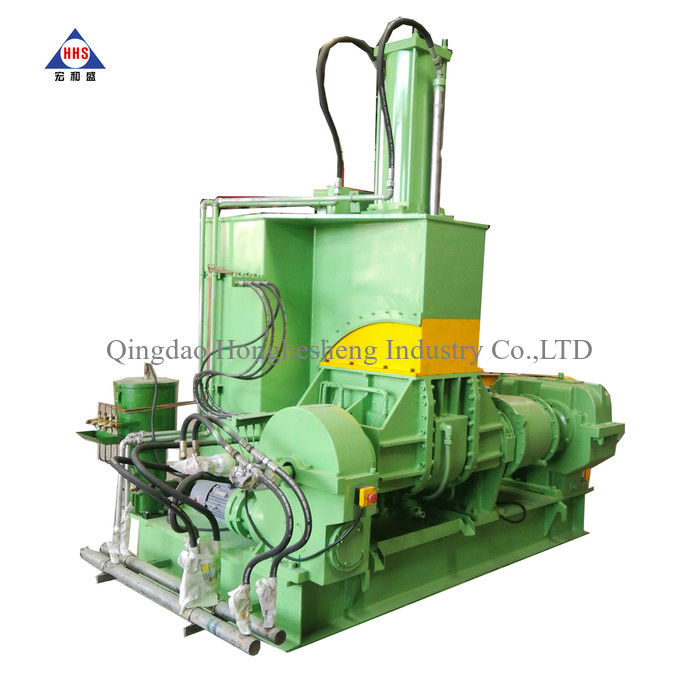

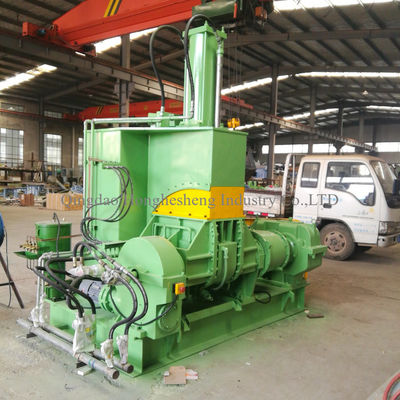

D.Photos:
N
