Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50~60HRC | Bush: | Nylon Bush,bearing Bush,ball Bearing B |
| Voltage: | 220V/380V/450V | Power(w): | 55KW |
| Weight: | 11400KG | Dimension(l*w*h): | 5405*1740*1790mm |
| Warranty: | 1 Year | Condition: | New |
| High Light: | Automatic Two Roll Open Mixing Mill,Rubber Two Roll Open Mixing Mill,Automatic Stock Blender Rubber Mixing Mill |
||
1.The roller is made of chilled cast iron. It is divided into hollowed roll and drilled roll. The inner of hollowed roll is machined. The hollowed roll surface can be smooth or grooved. The grooved roll has full grooved surface, partial grooved surface and so on.
2.The roll is supported by roller bearing so it has low noise and long service life.
3.The roll bearing adopts grease lubricating and oil lubricating.
4.The pressure transducer system is available for directly displaying the working pressure and control the feed. When over pressure, it will automatically stops and save or print the pressure value.
5.The product is complied with nation-established safety standard (this standard is identical with Europe standard.)
Technical parameters
| Model | X(S)K-160 | X(S)K -250 | X(S)K -360 | X(S)K -400 | X(S)K -450 | X(S)K -550 | X(S)K-660 | |
| Diameter of rolls | 160 | 250 | 360 | 400 | 450 | 550 | 660 | |
| Working length of roll | 320 | 620 | 900 | 1000 | 1200 | 1500 | 2130 | |
| Working speed of front roll | 8.95 | 14.9 | 17.4 | 19.3 | 23.1 | 28.6 | 30 | |
| Fraction ratio of rolls | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.29 | 1:1.05 | |
| Max.gap(mm) | 5 | 8 | 10 | 10 | 10 | 15 | 15 | |
| Nip regulating mode | Manual | Manual | Manual | Manual or Electric | Manual or Electric | Manual or Electric | Electric | |
| Batch capacity(Kg) | 1-2 | 10-15 | 20-15 | 25-35 | 30-50 | 50-60 | 120-140 | |
| Motor | Power | 5.5 | 15 | 30 | 45 | 55 | 90/110 | 180 |
| Motor speed(r/m) | 1440 | 730 | 980 | 740 | 980 | 740 | 740 | |
| Reducer | Full closed type hardened gear speed reducer | |||||||
| Reduction ratio | 43 | 35 | 49.7 | 38 | 47.2 | 35.6 | 126.2 | |
| Overall dimension (mm) | 1120x920 X1295 | 3400x1270 X1620 | 4140x1770 X1700 | 4490x1700 X1750 | 5570x1900 X1750 | 6290x2330 X1780 | 7500x 2630x2060 | |
| Weight (kg) | 1100 | 4200 | 7600 | 9000 | 11500 | 20000 | 26500 | |

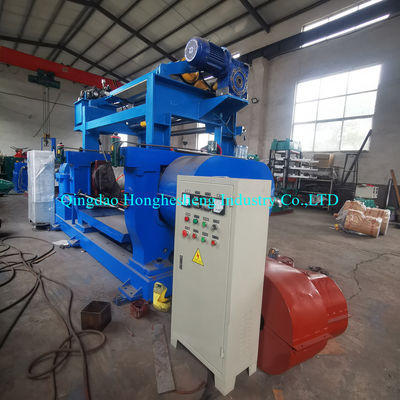

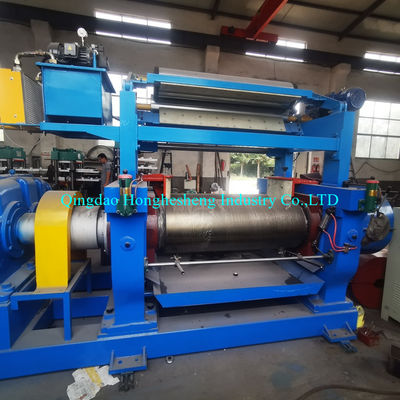

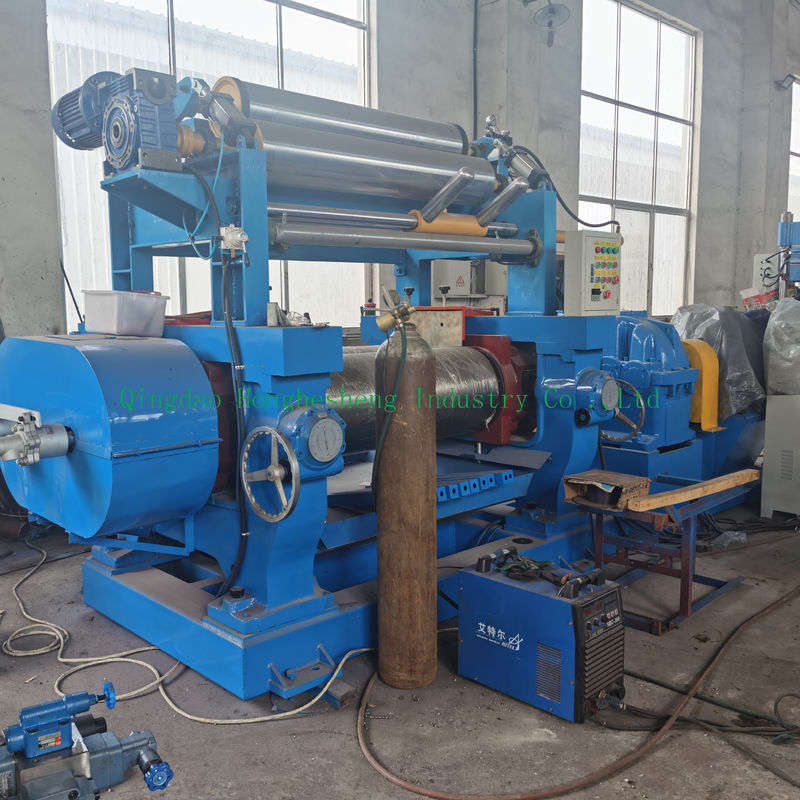

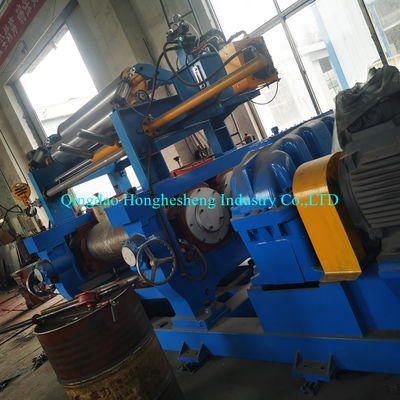

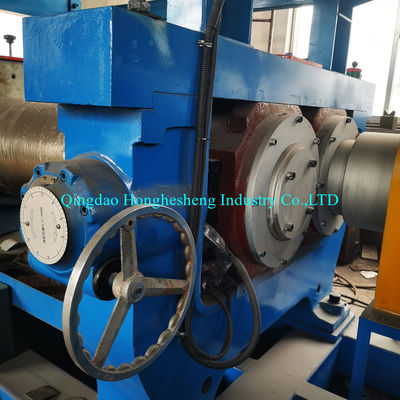

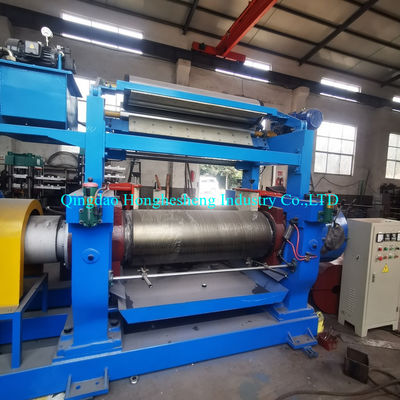

Detailed Pictures
