Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50~60HRC | Bush: | Nylon Bush,bearing Bush,ball Bearing B |
| Voltage: | 220V/380V/450V | Power(w): | 55KW |
| Weight: | 12000KG | Dimension(l*w*h): | XK-450x1200 |
| Warranty: | 2 Year | Condition: | New |
| High Light: | Rubber Mixing Mill 55KW,Roller Rubber Mixing Mill |
||
The machine main uses are following in rubber product factory: Natural rubber refining, raw rubber and compound mixing. Rubber beating, mixing and rubber tab letting.
This machine is double roller opening to be used for rubber mixing. It consists of seat, Frame, Rubber, Driving device, Lubricator and cooler, range adjusting device of roller. Safety brake, Motor and reducer, etc. the roller is made from safety cooled and hard cast steel, smooth surface is polished. in term of different case. Saturated steam and cooling water can be inputted in the empty roller to adjust speed of roller. Colloidal particles are drawn into the gap of the two rollers which make relative rotation in different velocity to mix rubber
Technical parameters:
| 1.Type | XK-450x1200 |
| 2.Diameter of front & rear roller | 450mm/450mm |
| 3.Working length of rollers | 1200mm |
| 3.Linear speed of front roller | 24.04m/min |
| 4.Friction ratio of front & rear roller | 1:1.27 |
| 5.Max. nip & Nip regulating | 12mm, manual |
| 6.Max. capacity per batch | 50kg per batch |
| 7.Motor power | 55KW or 75KW |
| 8.Speed reducer | Hardened teeth speed reducer |
| 9. Roller support type: | Bearings |
| 10.Machine weight | Around 12 ton |

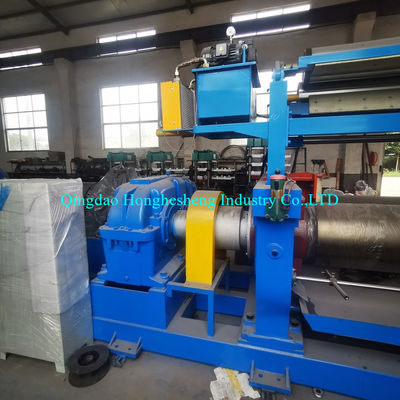

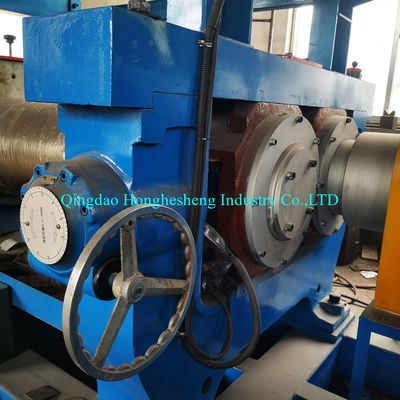

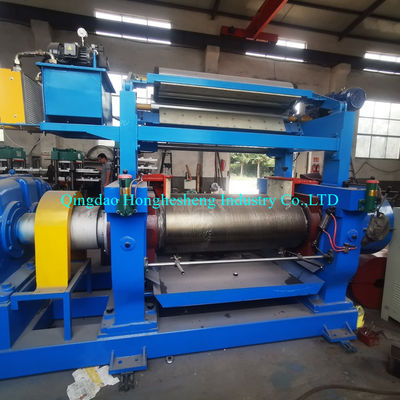

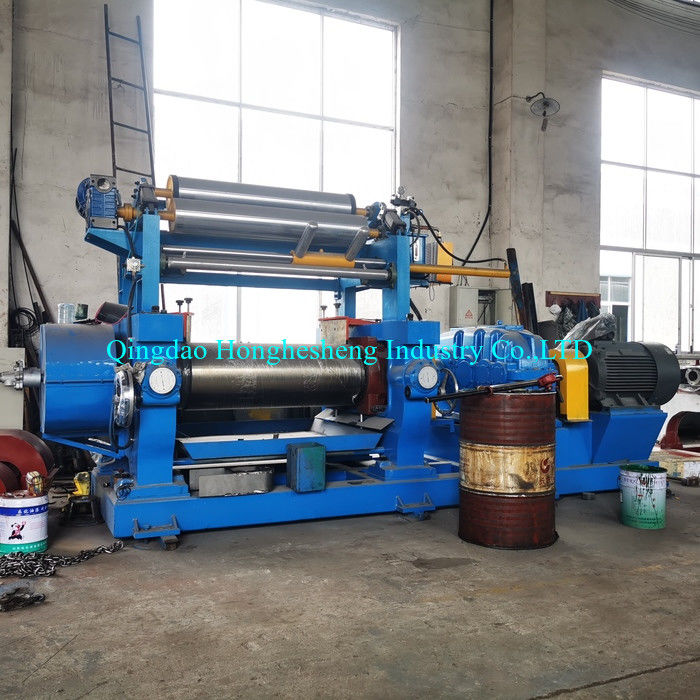

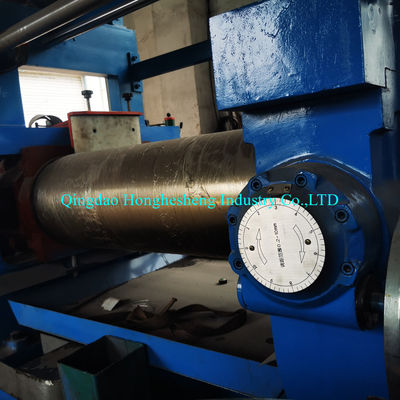

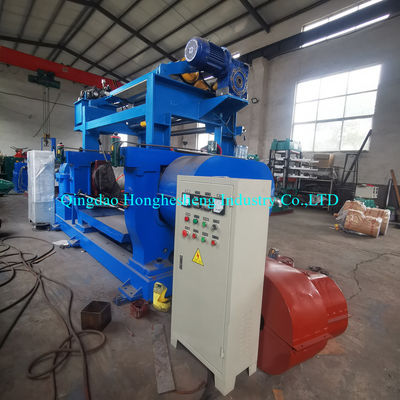

Detailed Pictures
