Product Details:
|
| Type: | Vulcanizer | Colour: | All Colour |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 2.2kw |
| Temperature: | Max 300 Degree | Plates: | 300-2100mm |
| Hot Plates Material: | Q-235 Material. | Heating: | Electricity , Steam Heating , Conduction Oil Heating . |
| Weight: | 5000 Kg | ||
| High Light: | Tire Tread Grooving Machine,Double C Type Vulcanizing Press,ISO Tire Tread Grooving Machine |
||
Rubber vulcanizer is used for vulcanizing all kinds of rubber and plastic mould products, and non-mould products. Being frame type, the machine is different from the column type , it is allowed to install larger diameter hydraulic cylinder, reducing the quantity of cylinders, with simple structure, and little maintaince wok. The frame can bear more stress and it has cheap price, nice surface, easy to operate.
Features:
1.Low energy consumption
2.Convenient in maintenance
3.High capacity with simple operation
4.Automatic PLC system
Structures:
1. Two dual-action cylinders are adopted for fast mold open / close;
2. Provided with mass flow pre-fill valve;
3. Automatic mold forward / backward;
4. PLC controlled;
5. Unit area pressure no less than 45kg/cm ² to ensure the density of the tyre-surface
6. Multiple options of layer number and tables;
7. Hydraulic pressure components and electrical equipments are imported or of local famous brand, to ensure reliable performance.
8. Each batch tyre tread vulcanizing time is 22-25 minutes.
9. We also can according to the customers' requirement, and design the non-standard type of tire tread vulcanizing machine.
Specifications:
| Model | Total Press(MN) | Heating Plate Size(mm) | Plates Daylight | Working Layer No. | Piston Stroke(mm) | Hydraulic Cylinder Diameter(mm) | Hydraulic Cylinder No.(group) | Open Mould Speed(mm/s) | Close Mould Speed(mm/s) | Hydraulic System Pressure(Mpa) |
| XLB-600*6200*1 | 11.20 | 600*6300*1 | 200 | 1 | 200 | 400 | 6 | >=12 | >=12 | 16.4 |

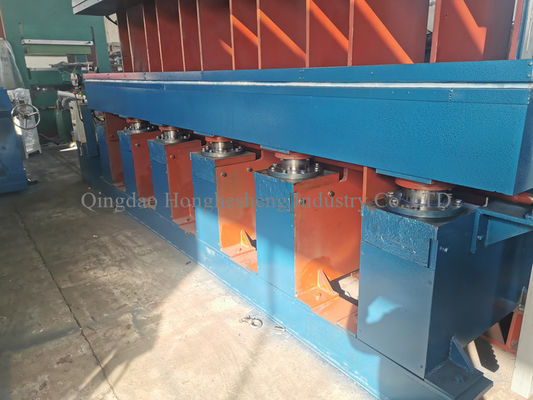

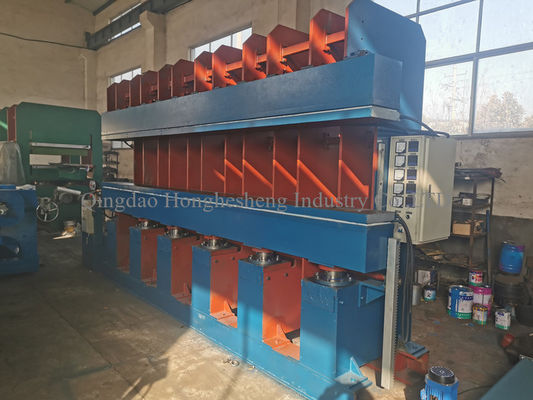

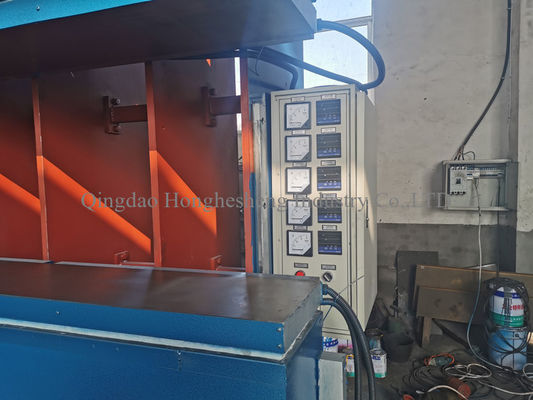

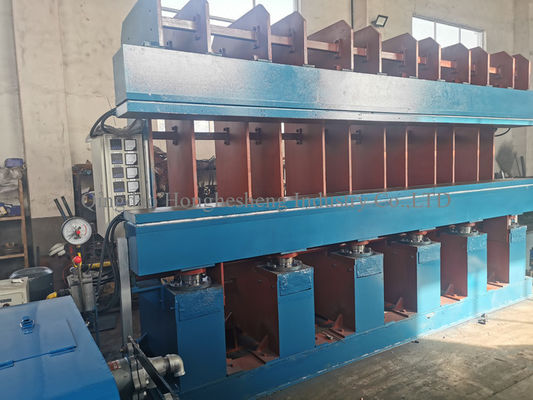

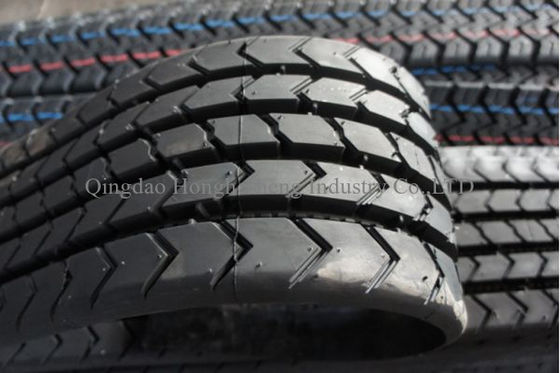

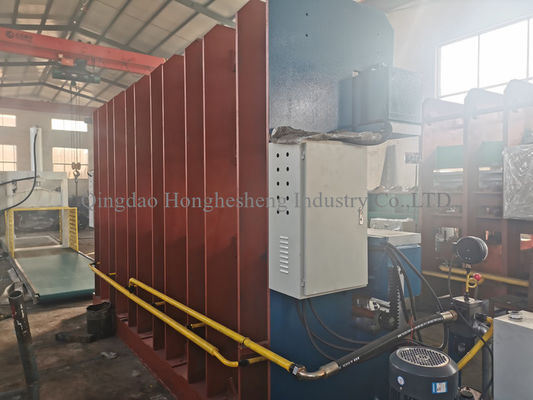

Pictures:
