Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 3layers |
| Hot Plates Material: | Q-235 Material. | Heating: | Electricity , Steam Heating , Conduction Oil Heating . |
| Advantage: | High Production | ||
| High Light: | 160T Solid Tire Vulcanizing Machine,OEM Solid Tire Vulcanizing Machine,160t Plate Vulcanizing Press |
||
Technical Parameters:
| Type | XLB-1200×1200×2 | XLB-1300×2000×1 | XLB-1200×2500×1 | XLB-1500×2000×1 | XLB-2000×3000×1 | XLB-1400×5700×1 |
| Total pressure(MN) | 315t | 560t | 750t | 1000t | 1800t | 2800t |
| Plate size(mm) | 1200×1200 | 1300×2000 | 1200×2500 | 1500×2500 | 2000×3000 | 1400×5700 |
| Daylight(mm) | 200 | 400 | 400 | 400 | 400 | 400 |
| Layer | 2 | 1 | 1 | 1 | 1 | 1 |
| Piston stroke(mm) | 400 | 400 | 400 | 400 | 400 | 400 |
| Plate unit area pressure (kg/ cm2) | 22 | 21.5 | 25 | 33.5 | 30 | 35 |
| Main motor power(KW) | 3 | 8 | 9.5 | 11 | 26 | 43.5 |
| Overall dimension (L×W×H)(mm) | 1685×1320×2450 | 2000×1860×2500 | 2560×1700×2780 | 2810×1550×3325 | 2900×3200×2860 | 2400×5800×3600 |
| Weight (kg) | 9500 | 17000 | 20000 | 24000 | 66000 | 110000 |
1.Cylinder adopts advanced seals constructure , it owns reasonable design with reliable function
2.Cylinder is made of QT-500-7 , diameter is 250mm. Totally 2 cylinders
3.Beam and plateform are all welded by high quality Q235A carbon steel. After welding , they are futhure processed by manual vibration or high temperature tempering processing to avoid warping
4.Hot plate is welded by high quality Q235A carbon steel. After welding , it is futhure processed by manual vibration or high temperature tempering processing to avoid warping
5.Seal is PU seals , it is oil resistant , anti-aging , wear resistant
6.Heatiing shield : its calcium silicate board , pressing pressure is 3.5Mpa , coefficient of heat insulation is 0.031

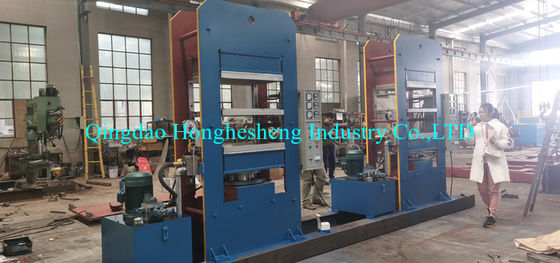

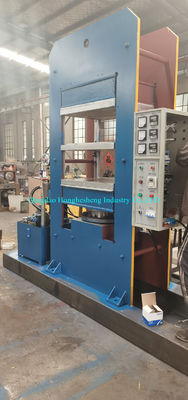

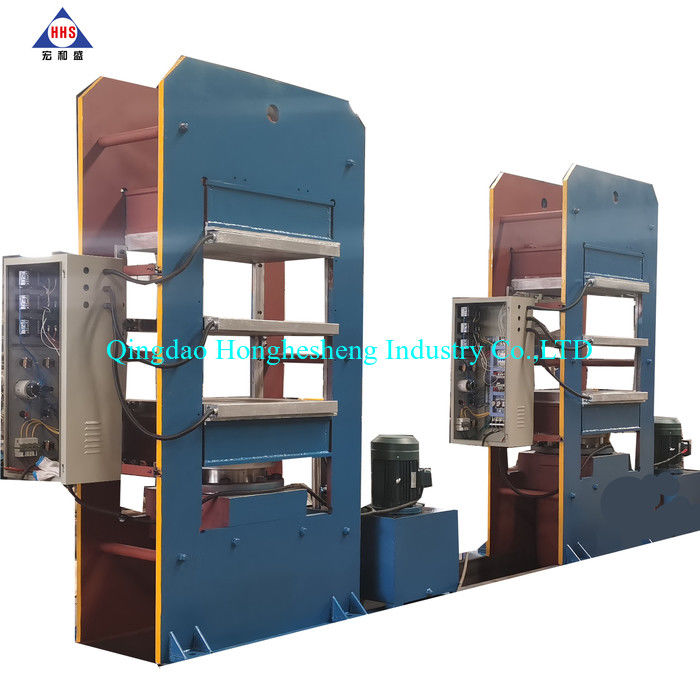

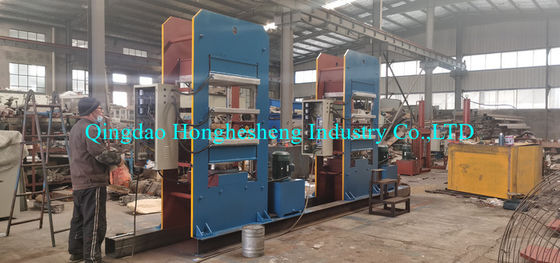

Detailed Pictures
