Product Details:
|
| Place Of Origin: | Shandong, China | Brand Name: | HHS |
|---|---|---|---|
| Model Number: | XQL-120 | Voltage: | 220V /380V /440V |
| Dimension(L*W*H): | 2300X1500X2530 | Certification: | CE,ISO9001 |
| Warranty: | 1 Year | Type: | Rubber Cutting Machine |
| Weight: | 2000kg | Power(W): | 11KW |
| Product Name: | High Quality Vertical Rubber Bale Cutter | Time Of Blade Cutting: | 13-16 |
| High Light: | Silicone Sealing Strips Cutting Cutters,11KW Sealing Strips Cutting Cutters,CNC Strips Rubber Cutting Machine |
||

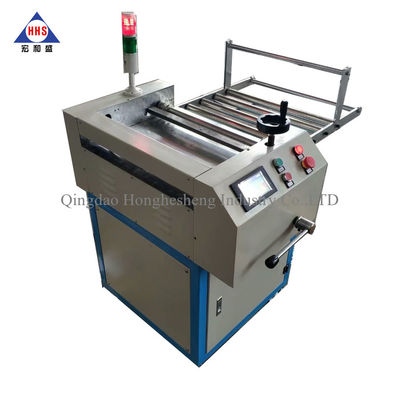

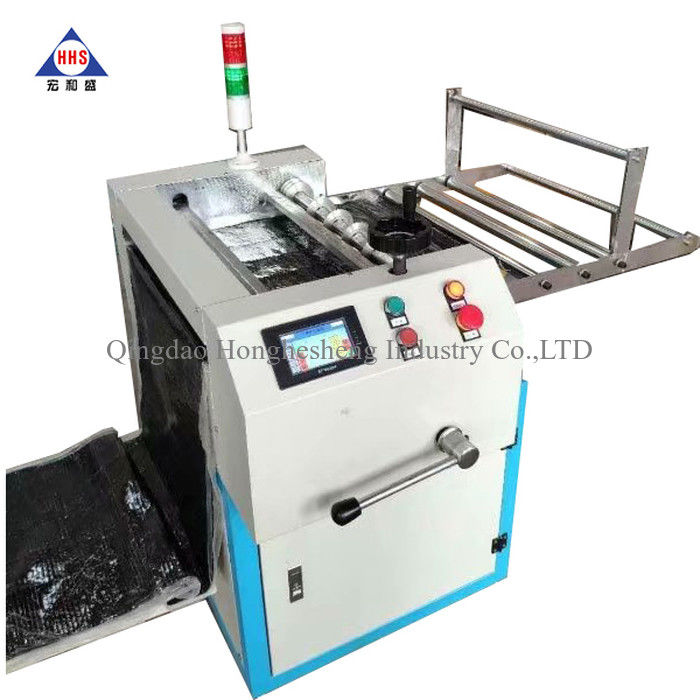

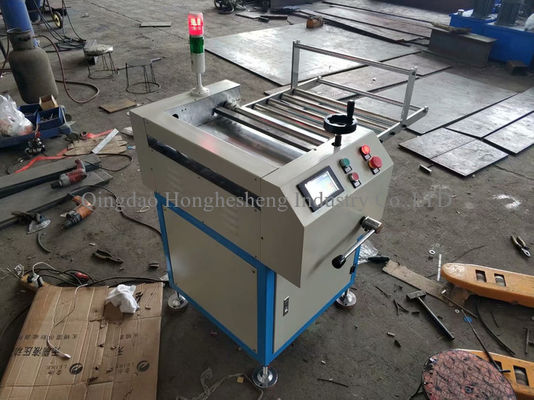

Silicone Sealing Strips Cutting Cutters Strips Rubber Cutting Machines
The rubber slitting/cutting machine has replaced the backward process of manual material cutting, and ensured the shearing precision, avoided the material waste, improved the working efficiency and reduced the cost.The machine is suitable for cutting various materials such as Silicone Rubber,filter sponge,Leather,EVA Foam,Sponge,PVC Sheet,Polyurethane Rubber,PVC film,plastic hard sheet,Nylon Coated Neoprene Rubber Sheets, rubber, silicone, polyester film, leather, sponge, glass fiber, carbon fiber, paper, aluminum sheet, etc.
Features
1. The CNC operating system adopts the famous brand (xinjie) 7-inch touch screen, PLC, the response speed is fast, the service life is long, the after-sale service has the safeguard, the system screen has many dimensions to store the page, convenient your quick setting.
2. The machine slide is made of copper, with advantages of self-lubrication, wear resistance and long service life.
3. The power output of this machine adopts hangzhou famous brand worm gear reducer, which has the advantages of low noise, good heat dissipation, long life, large power transmission, impact resistance, etc.
4. The transmission system of this machine adopts belt transmission with tooth shape, which has the advantages of low noise, high friction, wear resistance, no heat and low power loss, etc. Its price and life is ordinary triangle belt 3 times.
5. Blade material selection alloy steel tungsten steel, sharpness, wear resistance, especially suitable for rubber and other materials of high frequency cutting.
6. PVC conveyor belt easy to put the material, the material does not run off, so that the film feeding tension is constant, to ensure the maximum accuracy of size.
Feature
7. The stainless steel outlet has registered the appearance design patent, the design is reasonable, the slope is big, the material slides smoothly does not block the material.
8. The discharge port is equipped with infrared induction switch to prevent improper hand cutting.
Parameter
| Model | MT-ZYG600 | MT-ZYS600 | MT-ZYS800 | MT-ZYS1000 | MT-ZYS1300 | MT-ZYS1500 |
| Width | 600mm | 600mm | 800mm | 1000mm | 1300mm | 1500mm |
| Length | 1-65mm | 1-9000mm | ||||
| Thickness | 2-18mm | 2-20mm | 2-20mm | 2-22mm | 2-25mm | 2-25mm |
| Cutting speed | 75times/min | 75times/min | 60times/min | 50times/min | 45times/min | 45times/min |
| Carrier way | Conveyor + platform | Conveyor | ||||
| Votlage | 220V | 220V | 220V | 220V | 220V | 220V |
| Power | 2.2KW | 2.2KW | 3KW | 4KW | 5.5KW | 5.5KW |
| Size | 2*0.8*1.1M | 1.3*1.2*1.1M | 1.5*1.2*1.1M | 1.5*1.4*1.2M | 1.6*1.5*1.2 | 2.1*1.7*1.2M |
| Weight | 260kg | 300kg | 380kg | 450kg | 650kg | 750kg |
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
