Product Details:
|
| Type: | Vulcanizer | Colour: | Customized |
|---|---|---|---|
| Voltage: | 220/380/415v,customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Heating: | Electricity , Steam Heating , Conduction Oil Heating . |
| Weight: | 3000 Kg | Advantage: | High Production |
| High Light: | Rubber Heating Molding Machine,Flat Rubber Heating Molding Machine,Four Column Plate Vulcanizing Press |
||

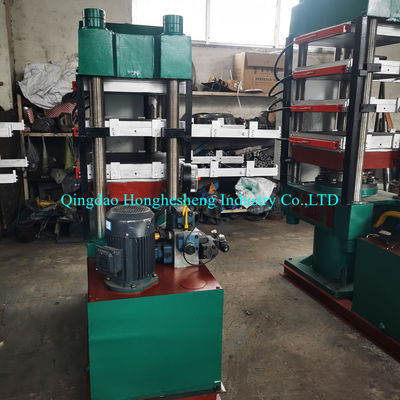

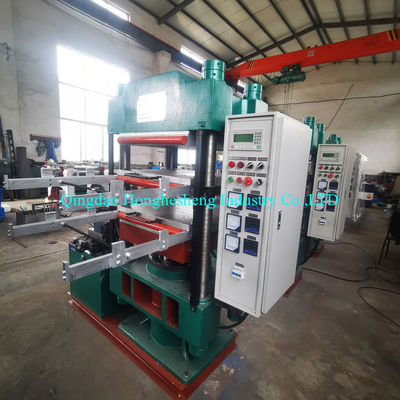

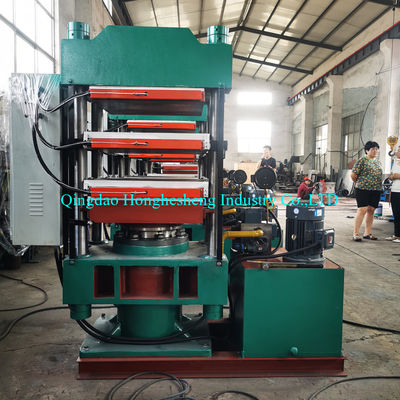

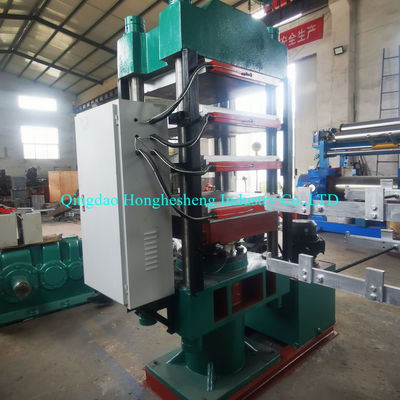

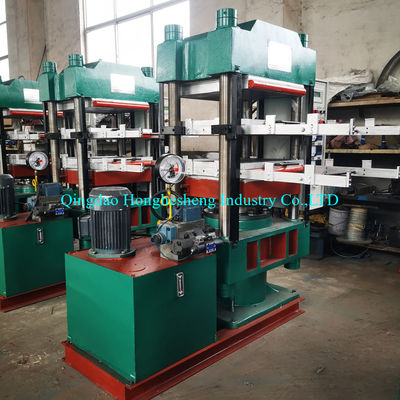

Column Vulcanizing Press Machine
Suitable for pressing all kinds of molded products, such as rubber and plastic, also suitable for thin sheet products. The machine is a four-column integral structure, the pressing type is down (up) pressure type, divided into main engine, oil tank and electric control box three parts. The main machine is equipped with plunger, cylinder, fixed plate, movable plate and other parts. Oil tank has oil pump, pipe, valve and other parts. The oil pump is driven by a motor, and the electric control box is equipped with a button switch, magnetic starter, timing alarm, brake temperature controller, overload protector, etc. When motor overload can automatically cut off power supply, electric heating temperature control, the automatic temperature control in three road, can be adjusted within the range 20-300 degrees, after reaching the temperature, the circuit can automatically to keep constant temperature, to achieve the set after curing time, automatic alarm, in the process of automatic exhaust, exhaust times can be set, can automatically move in and out of abrasive, automatically open grinding tool. The majority of customers need manual type, semi-automatic type, automatic type.
*****************************************************************************************
Other Vulcanizing Machines
Frame type vulcanizing press
Jaw type vulcanizing press
