Product Details:
|
| Voltage: | 220V/380/450V | Power(w): | 1.5KW |
|---|---|---|---|
| Color: | Orange,Blue Or Green,customized | Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet |
| Warranty: | 1 Year | Lift Speed: | 9.5m/min |
| Capacity: | 130KG/batch | Condition: | New |
| Weight: | 600kg | Dimension(l*w*h): | 3780*875*2260mm |
| High Light: | Rubber Kneader Bucket Elevator,Rubber Kneader Bucket Elevator 1.5KW,Rubber Mixing Mill Bucket Elevator |
||
Usage:
This machine is a kind of Transport Machinery.This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compound mixing,rubber warm-up mixing and pressing sheet.
Structure:
This machine consists of Base,Rack,Gland,Rollers,Bearing,Transmission device,Lubrication device,Decelerator,Adjustment device of the roller temperature,Emergency shutdown device and brake rigging and etc.
Lubrication:
(1). Reducer,No.18 hypoid gear oil and almost.Firstly change oil after two months,lator on change oil once each 6-12 months
(2). Filling lithium lubricating grease when overhaul each bearings
(3). Shelling-out the chains with No.30 machine oil once each month.
Installation and Testing Run:
(1). The machine should be fixed as the foundation drawing and filled foundation bolt;
(2). Check the degree of tightness of the chains and adjust them appropriately.The Chains driving hopper should be tensioned appropriately.
(3). During testing run,assure each parts to run stable,no JAM.If not,adjust it timely.
Specification and Performance
| 1, Apply to type of Kneader | 35L/55L/75L/110L |
| 2, Lifting Speed of Hopper (m/min) | 13.8 |
| 3, Lifting Weight(kg) | 160 |
| 4, Speed of Mainshaft(r/min) | 25.9 |
| 5, Driving Motor Power(KW) | 1.5 |

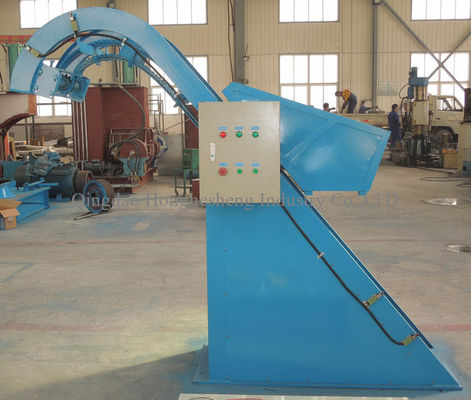

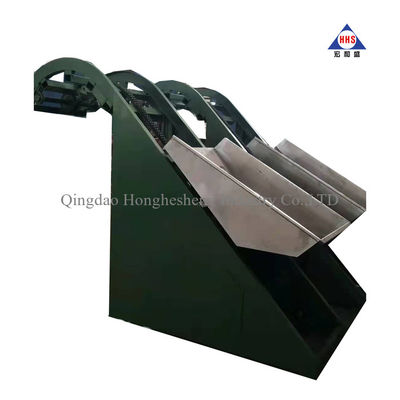

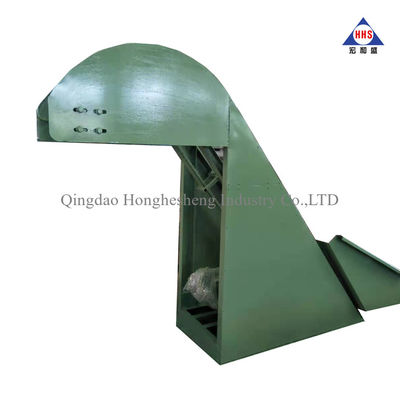

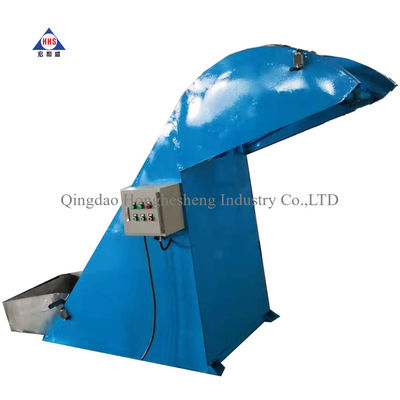

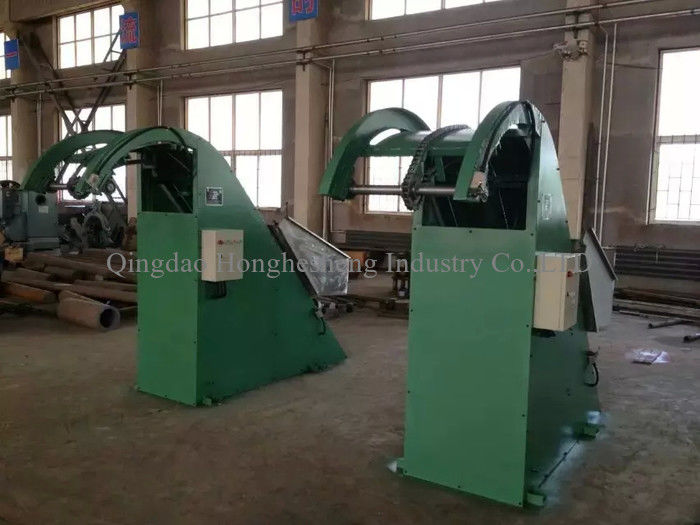

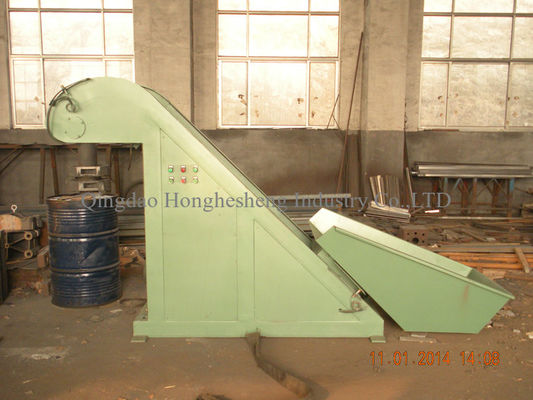

Detailed pictures
