Product Details:
|
| Place Of Origin: | Shandong, China | Model Number: | XPG-600 |
|---|---|---|---|
| Condition: | New | Brand Name: | HHS |
| Voltage: | 380V | Suitable Sheet Size: | 600-900mm |
| Dimension(L*W*H): | 14850/18600*1880*3100mm | Weight: | 20T |
| Certification: | ISO9001:2008 | Warranty: | One Year |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Power: | 20-26kw |
| Color: | As Customer Require | Line Speed: | 5~25m/min |
| Maximum Cutting: | 450mm | Length Tolerance Of: | <3mm |
| High Light: | Rubber Sheet Batch off Cooler,25m/min Batch off Cooler |
||
1.Specification :
Characteristic
1. Rubber sheet cooling line adopts steel conveying rollers, equipped with printer and slitter. The take-off and lifting device are driven by a common AC inverter motor. The conveying speed is adjustable.
2. The sheet is uniformly coated with the lubricator by dipping without polluting the environment. Its cooling effect is better than the spraying.
3. The hanging up area is fully closed, which adopts the blower to blow the sheet at a slant. So it improves the air flowing direction and cooling effect.
4. The robot in the take-off is advanced in China. The take-off can be controlled automatically.
parameters
| Item | XPG-600 | XPG-800 | XPG-900 | |
| Max.rubber sheet width(mm) | 600 | 800 | 900 | |
| The thickness of the rubber sheet(mm) | 4-10 | 4-10 | 6-12 | |
|
Rubber sheeting temperature over room temperature after cooling |
5 | 5 | 5 | |
| Linear speed of taking-in conveyer(m/min) | 3-35 | 3-35 | 3-35 | |
| Linear speed of sheet hanging bar(m) | 1-1.26 | 1-1.26 | 1-1.26 | |
| Hanging height of the sheet hanging bar(mm) | 1000 | 1200 | 1400 | |
| Number of cooling fans(Set) | 12-16 | 20-32 | 24-32 | |
| Total power(kw) | 16 | 20-26 | 25-35 | |
| Overall dimension(mm) | 12400*2140*2820 | (14850-18600)*2220*2860 | (18000-21750)*2300*2980 | |
| About weight(t) | 10 | 20 | 30 |

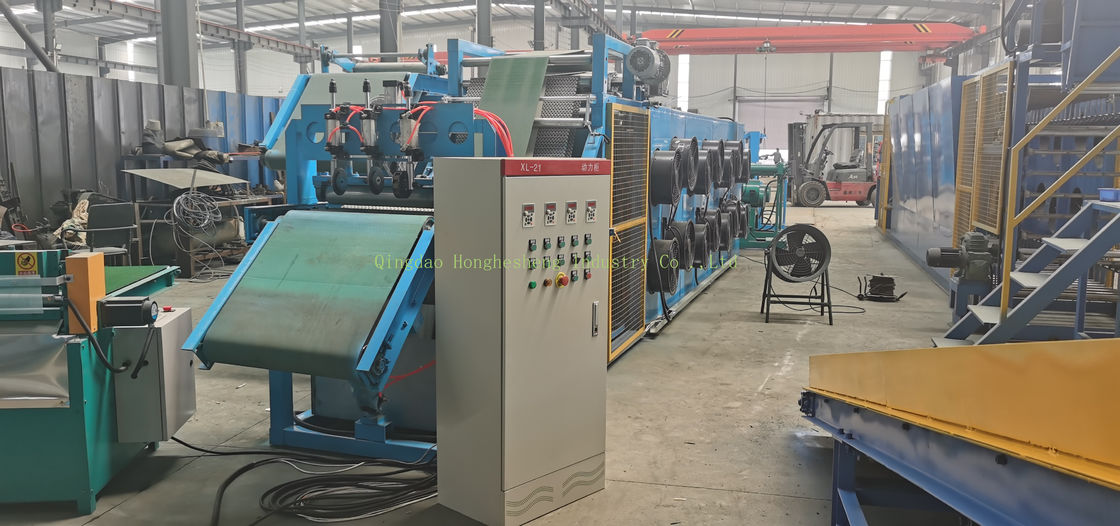

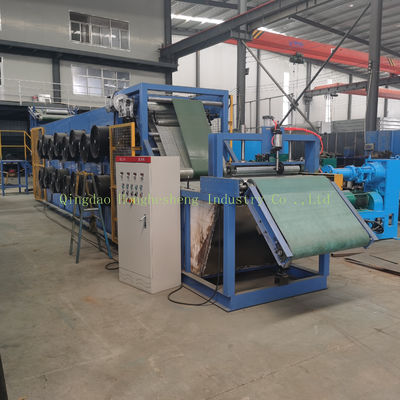

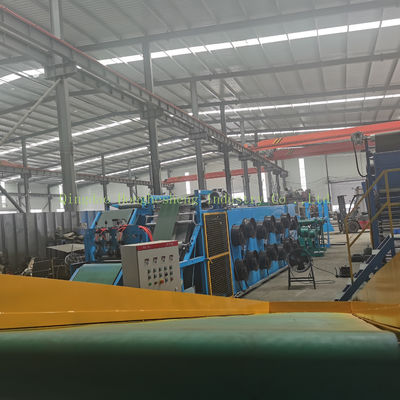

pictures
