Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50~60HRC | Bush: | Nylon Bush,bearing Bush,ball Bearing B |
| Voltage: | 220V/380V/450V | Power(w): | 2.2KW |
| Weight: | 500KG | Dimension(l*w*h): | 1400*800*1350mm |
| Warranty: | 2 Year | Condition: | New |
| High Light: | Two Roll Open Rubber Mixing Mill,Open Type Silicone Mixing Mill |
||
This machine mainly consists of rollers , ZQbull gearbox (except XK-160), electrical cabinet ,nylon bush transmission device , main motor , etc . It is widely used for mixing , warming and sheeting rubber , etc .
Technical parameters:
| Model | X(S)K-160 | X(S)K -250 | X(S)K -360 | X(S)K -400 | X(S)K -450 | X(S)K -550 | X(S)K-660 | |
| Diameter of rolls | 160 | 250 | 360 | 400 | 450 | 550 | 660 | |
| Working length of roll | 320 | 620 | 900 | 1000 | 1200 | 1500 | 2130 | |
| Working speed of front roll | 8.95 | 14.9 | 17.4 | 19.3 | 23.1 | 28.6 | 30 | |
| Fraction ratio of rolls | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.29 | 1:1.05 | |
| Max.gap(mm) | 5 | 8 | 10 | 10 | 10 | 15 | 15 | |
| Nip regulating mode | Manual | Manual | Manual | Manual or Electric | Manual or Electric | Manual or Electric | Electric | |
| Batch capacity(Kg) | 1-2 | 10-15 | 20-15 | 25-35 | 30-50 | 50-60 | 120-140 | |
| Motor | Power | 5.5 | 15 | 30 | 45 | 55 | 90/110 | 180 |
| Motor speed(r/m) | 1440 | 730 | 980 | 740 | 980 | 740 | 740 | |
| Reducer | Full closed type hardened gear speed reducer | |||||||
| Reduction ratio | 43 | 35 | 49.7 | 38 | 47.2 | 35.6 | 126.2 | |
| Overall dimension (mm) | 1120x920 X1295 | 3400x1270 X1620 | 4140x1770 X1700 | 4490x1700 X1750 | 5570x1900 X1750 | 6290x2330 X1780 | 7500x 2630x2060 | |
| Weight (kg) | 1100 | 4200 | 7600 | 9000 | 11500 | 20000 | 26500 | |

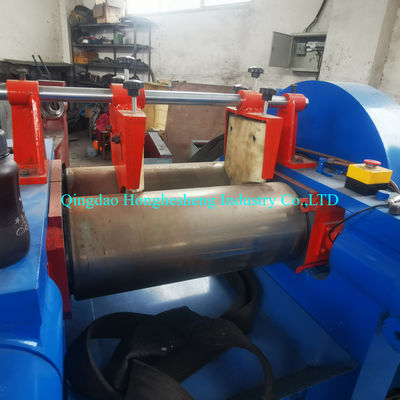

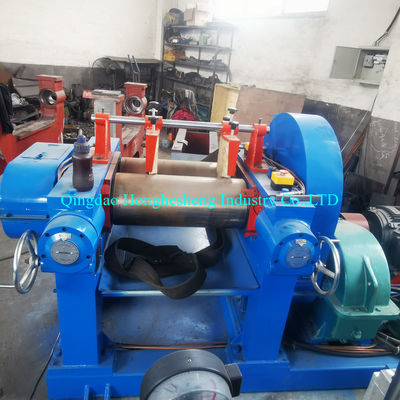

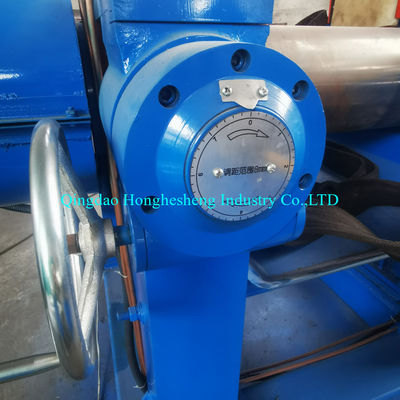

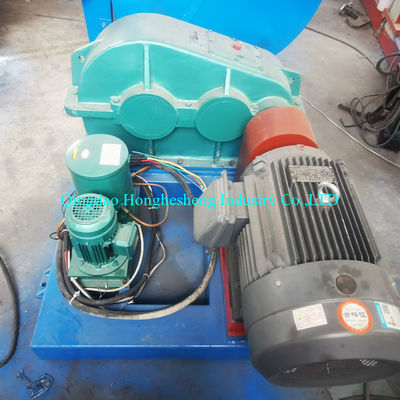

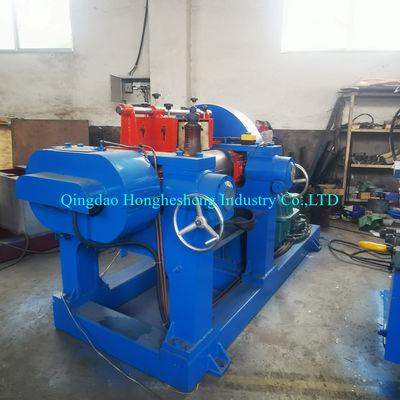

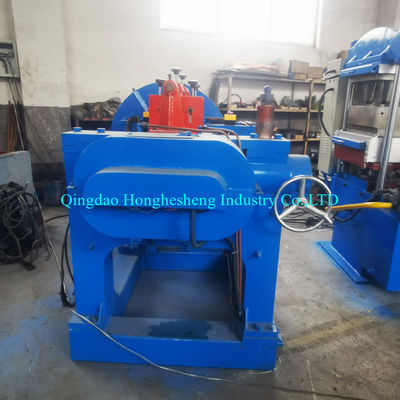

Detailed pictures
Open Mixing Mill For Laboratory
