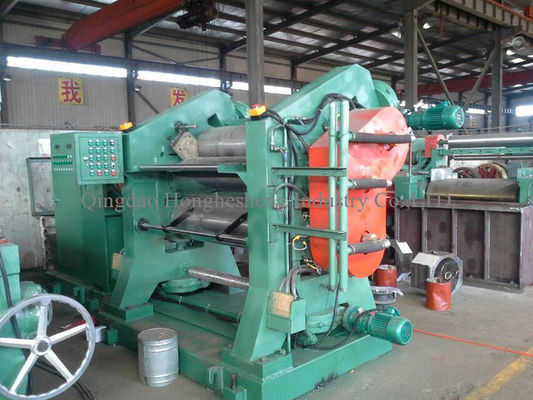

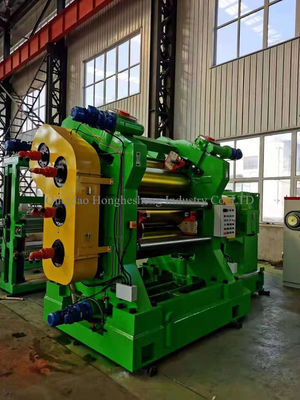

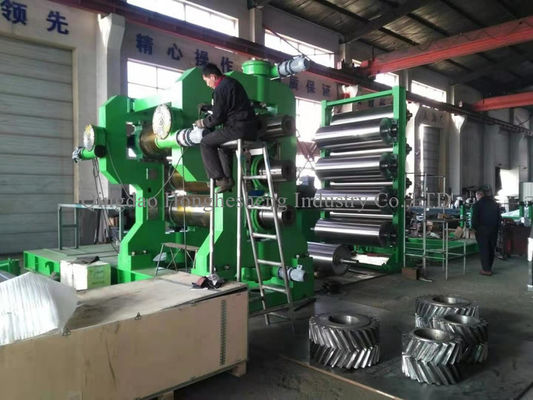

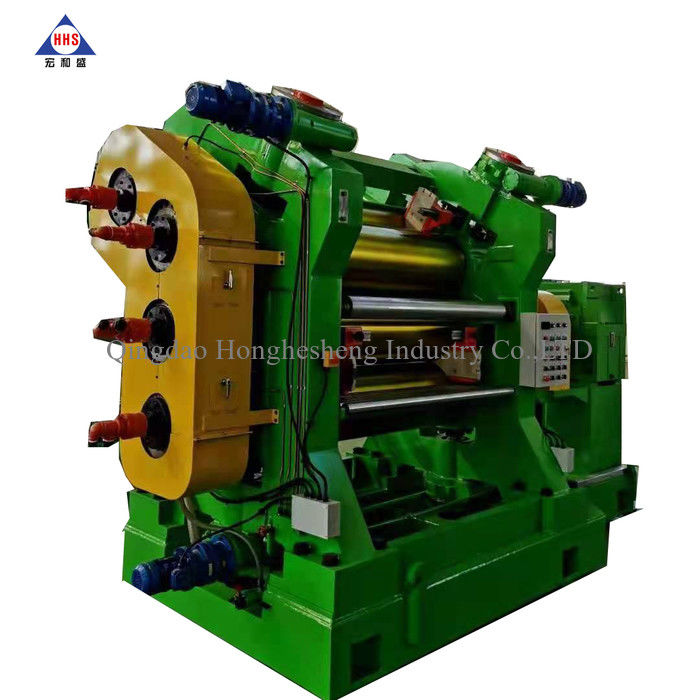

Four Rolls Calender Machine Rubber Sheet Calender Mill

1.Application

Four roller rubber calender machine is mainly using for fabric, canvas and others fabric continuation rubberizing single or double sides, and also production rubber sheet.

1) Calender line for coating textile tire cord fabric (tire industry).

2) Calender line for inner liner, rim cushion and rubber sheet laminating (tire industry).

3) Calender line for coating textile conveyor cord fabric.

4) Calender line for industrial rubber film and sheet.

2. Features

Four roller rubber calender is consisted of bedplate, frame, rollers, motor, coupling, gearbox, adjusting spacing device, the adjusting temperature device of roller, etc .

It mainly consists of roller,rack,backplane,adjustment device,transmission system,roller temperature control device,security device,lubricating device.The roller is made of Chilled Cast Iron alloys,whose work surface has high hardness,wear-resistance and durable life.Steem,cooling water and heat-conducting oil can pass into the roller's cavity,so that the working temperature can be adjusted in order to meet the technological requirements.What's more,roll spacing can be adjusted both by manual or electric mode.In addition,roller bearings' lubricating can adopt drier oil or dilute oil.

It can be used for rubberizing and frictioning of textile material,rubberizing of wirecord fabric,sheet and counter plate(embossed) of rubber material,separation of fabric and film,as well as joint of multi-layer laminate film.

We may design and produce it as per customers’ requirements, equip various accessories, composing combined product line.

3. The technical parameters
