Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Video Outgoing-ins: | Provided | Warranty: | 3 Years |
| Core Components: | PLC, Engine, Gearbox, Motor, Gear, Pump | Dimension(L*W*H): | 3500*3200*2800mm |
| Certification: | ISO9001:2008/CE | Weight (KG):: | 8000 Kg |
| Applicable Industries: | Rubber Machine | Roll Material: | Chilled Cast Iron |
| High Light: | 3 Roller Calendering Equipment,Rubber 3 Roll Calender Machine,High Accuracy 3 Roll Calender Machine |
||
1.Application
We can make 2 rolls, 3rolls and 4 rolls; Φ250-Φ800mm; I type, r type, L type and s type calenders.
2. Features
1. Tailored structure, easy to operate and install.
2. There are many speeds and speed ratios available, which can satisfy most customers’ formula and technique requirements.
3. Frame and base., looking very nice, are welded and treated by annealing for stress relieving.
4. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
5. Perfect emergency stop device can ensure the safety of person and equipment
6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil
7. The calendar is equipped with rolling bearings.

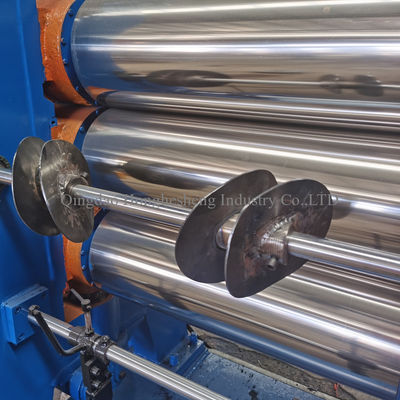

8. The roll is made of chilled cast iron alloy (LTG-H), equipped with rotating joint. Its surface finish is over Ra0.8.bored and drilled rolls are optional.
3. The technical parameters
