Tyre Retreading Machine Envelope Spreader 1600x1500x2200 mm

Large Image : Tyre Retreading Machine Envelope Spreader 1600x1500x2200 mm

Product Details:

Place of Origin:	CHINA
Brand Name:	HHS
Certification:	CE ISO
Model Number:	HD-800-2600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD:2000-20000 /SET
Packaging Details:	wood package /20-40 container
Delivery Time:	20 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/month

Contact Now

Tyre Retreading Machine Envelope Spreader 1600x1500x2200 mm

Description

Place Of Origin:	Shandong, China	Max Working Press:	0.8 MPa
Warranty:	1 Years	Core Components:	PLC, Pressure Vessel
Color:	Customer's Requirements	Advantage:	Full Automatic
Certification:	ASME CE, ASME CE	Key Selling Points:	Easy To Operate
High Light:	Tyre Retreading Envelope Spreader , Automatic Envelope Spreader

Tyre Retreading Machine / Envelop Spreader

Tire Retreading Process Flow

Tire Casings Collection→Initial Inspection→Old Tread Buffing→Section Repair & Skiving→Cementing & Filling →Cushion Gum→Building Tread Rubber→Ventilating Cloth→Enveloping System→Rims Mounting System→Test Envelope & Inner Tube→Curing Chamber System→Demounting Curing Rims→Undress Envelope→Final Inspection & Test →Finishing Paint→Retreaded Tire in Storage

Envelope Spreader

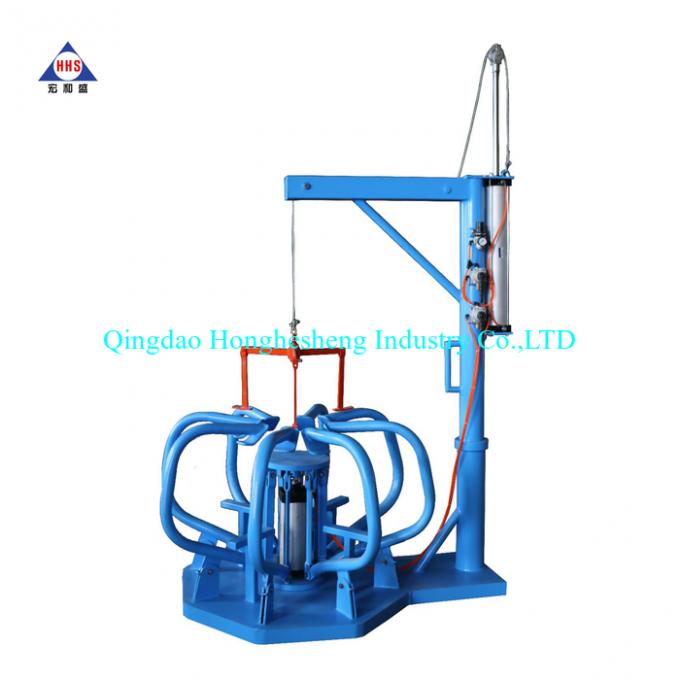

truck tyre Envelop Spreader for tire retreading line

Dimension:1600x1500x2200 mm

Operate the air cylinder and drive the Spreading Arms outwards to spread the Envelope. Then open the Gripper and grip the bead, and then lift the tire up with the cylinder-driven cable wire and guiding pulley. Rotate the lifting arm and lower the tire into the center of the Spreading Arms, and put it into the envelop. Manipulate the Air Cylinder to retrieve the Spreading Arms and release the Spreading Pads off the Envelop. Then lift the tire out of the Spreader.

More Pictures

truck tyre Envelop Spreader for tire retreading line

Truck Tire Retreading Whole Line Machines

Tyre Retreading Machine Envelope Spreader 1600x1500x2200 mm 10

Tyre Retreading Machine Envelope Spreader 1600x1500x2200 mm 11
