Product Details:
|
| Type: | Waste Tyre Recycling Line | Power(w): | 5.5kw/7.5kw |
|---|---|---|---|
| After-sales Service Provided: | Video Service | Voltage: | 380V,Customizable |
| Name: | Fiber Separator | Year: | 2021 |
| Function: | Seperate Steel Wire Powder Fiber From Waste Tyre | Raw Material: | Waste Tire |
| End Product: | Rubber Powder,tire Steel, Fiber | Usage: | Used Tire Recyling |
| High Light: | Waste Tire Steel Fiber Separator,7.5kw Waste Tire Fiber Separator |
||

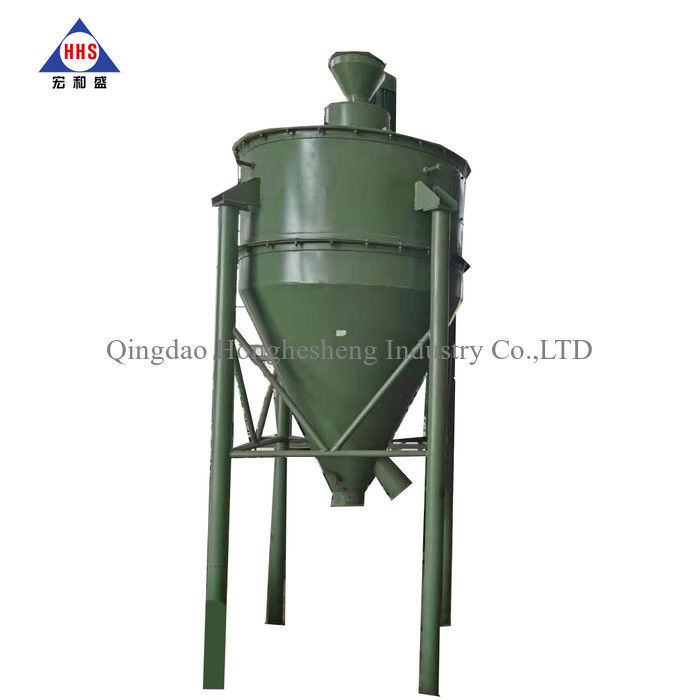

Fibre separaptor aim to separate fibre from rubber powder in order to guarranty the purity of rubber. Rubber and fibre can be separated from each other as their different speed flowed inside chamber by each specific weight.
Advantage:
1.11Years'experiences manufacturer
2.China expert on waste rubber pulverization
3.Brand pulverizer,shredder,crusher,screener,separator,grinder
4.Lifetime warranty,lowest price
5.ISO9001,SGS certification
Structure and principle:
This Rubber Powder Separator utilizes high speed air current to fluidize powder materials in sealed environment, under negative air pressure, light and heavy powders will be set apart , in this way to grade different size of rubber powders.
1.Automatic grading by circulating air current, without friction parts, steady operation, high efficiency and output;
2.One time grading efficiency up to 98%.
3.With rotary valve to keep continuous and even discharging for packing process.
4.Working under sealed negative pressure, without air pollution, durable, low noise and easy installation.
Technical Data:
| Model | 1100 | 1300 |
| Capacity(kg/h) | 200-500 | 300-800 |
| Size of Product(mesh) | 40-150 | 40-150 |
| Efficiency of Classifying | 98% | 98% |
| Power(kw) | 5.5 | 7.5 |
| Dimesnion(m) | 1.5x1.5x3.4 | 1.5x1.5x3.5 |
| Diameter of Impeller(mm) | 1100 | 1300 |
| Rotate Speed of Main Axis | 400 | 500 |
| Dimesnion(m) | 1.5x1.5x3.5 | 1.5x1.5x3.5 |
| Weight(t) | 1.5 | 1.8 |
