Product Details:
|
| Heating Platen Size: | 1000*1000 | Mold Closing ForceF: | 100T |
|---|---|---|---|
| Working Layers: | 1 | Motor Power: | 5.5KW |
| Overall Dimension: | 2200X900X2200mm | Weight: | 9000KG |
| Type: | Vulcanizer,tile Machine | Color: | Customizable |
| Power Source: | Hydraulic | Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour |
| Keyword: | Tile Vulcanizing Press | ||
| High Light: | 100T Rubber Tile Vulcanizing Machine,Hydraulic Rubber Tile Vulcanizing Machine,PLC Control Rubber Vulcanizing Equipment |
||

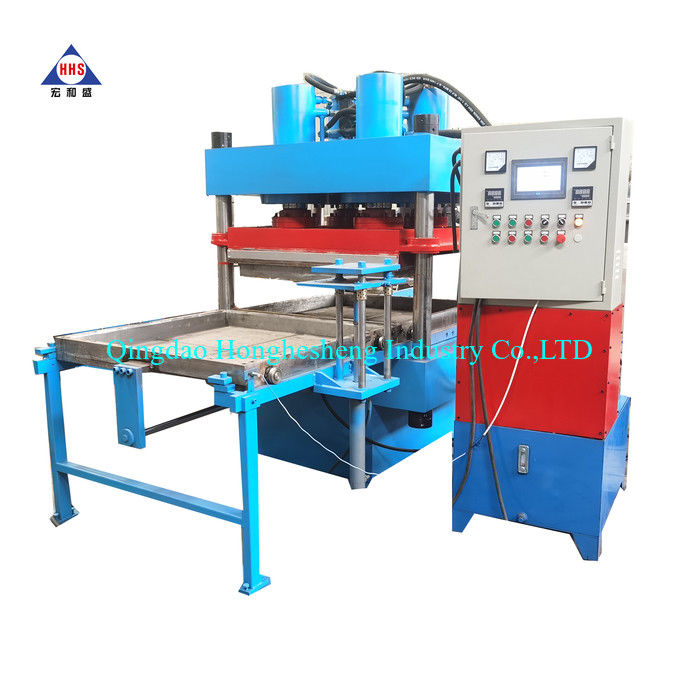

100T Rubber Tile Molding Machine/gym rubber tile machines/rubber floor tiles machine
Manual push-pull mold + High output and efficiency + Easy and safe operating
rubber flooring tiles product line is one type of environmental type rubber machine , used to process the waste tire rubber granules to be different types of rubber flooring tiles by vulcanizing and solidifying . Meanwhile , it can process PU granules , EPDM granules and nature rubber to be tiles .
Detailed Parameter
| Model | XLB-D1080*1080*1 |
| Unit Pressure | 10.3kg/cm² |
| Plate size (mm) | 1080*1080 |
| Daylight (mm) | 200 |
| Plunger stroke (mm) | 200 |
| Motor power (kw) | 5.5 |
| Cylinder Diameter | φ400mm |
| Cylinder Oil | φ200mm,4pcs |
| Pillar Quanity | 4pcs |
| Weight (KG) | 9000 |
PLC control of temperature, pressure and process time
- The cylinder and plunger are made up of high –quality materials.Simple and convenient structure , flexible operation, commodious space.
- Memory accessible for process time,pressure and temperature.
- Rubust designed safety door(Automatic sensing interlock, automatic pressure interlock)The control method can be changed as client's requirements.
- Our hot plate is made of Q-235 steel , can resist high temperature heating Without oil spilling or off pressure.Well done insulation.
- Using best Advanced PLC control panel , vulcanization time be setted in advanced.Mold speed can be adjusted according to customers need.
Detailed Pictures
