Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 90kw~200kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customer Request |
| Name: | Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant | Capacity: | More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h |
| Year: | New | Product Name: | Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery |
| Function: | Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder | Raw Material: | Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire |
| End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
| High Light: | Two Roll Rubber Grinder,Waste Tire Rubber Grinder,Waste Tire Rubber Crusher 200kw |
||
This machine is mainly used to grinding waste rubber , tire , tube , flap and break the raw rubber materials.
It consists of motor, gear-down reducer, driving gears, speed-ratio gears, front and back rolls, bearings, frame, cover, bed plate, adjusting pin device, emergency stop device, roll temperature adjusting device, lubricating device and material plate, etc.
| Item | XKP400 | XKP450 | XKP560 |
| Diameter of front roll(mm) | 400 (smooth) | 450(smooth) | 560(smooth) |
| Diameter of back roll(mm) | 400 (groove) | 450(groove) | 510(groove) |
| Working length(mm) | 600 | 650 | 800 |
| Linear speed of front rollm/min) | 17.32 | 23.2 | 25.56 |
| Ratio | 1:1.38 | 1:1.38 | 1:1.30 |
| MAX gap(mm) | 8 | 8 | 15 |
| capacity(kg/h) | 200-300 | 400-600 | 700-1000 |
| Motor power(kw) | 45 | 55 | 75 |
| Dimension (l*w*h)(mm) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 |
| Weight (kg) | 7000 | 11000 | 19000 |

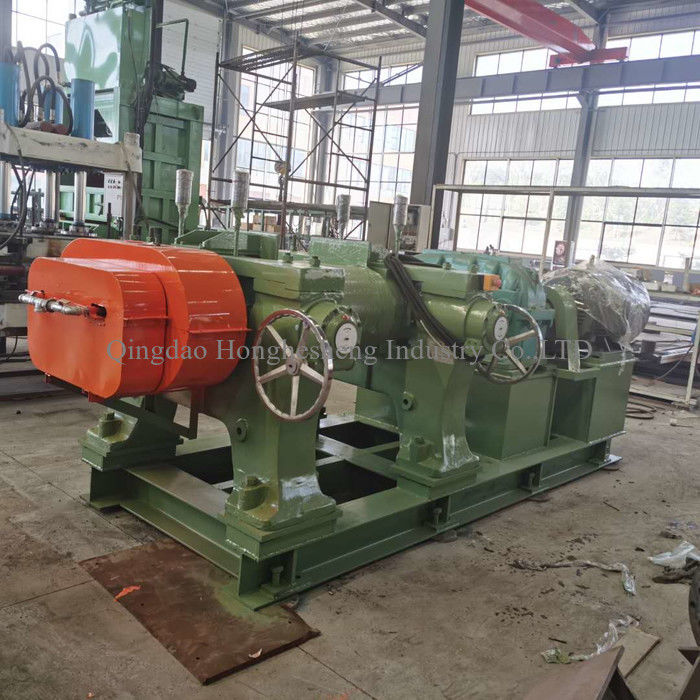

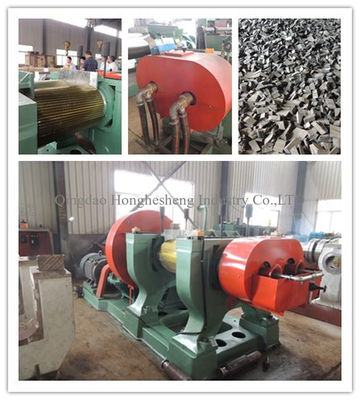

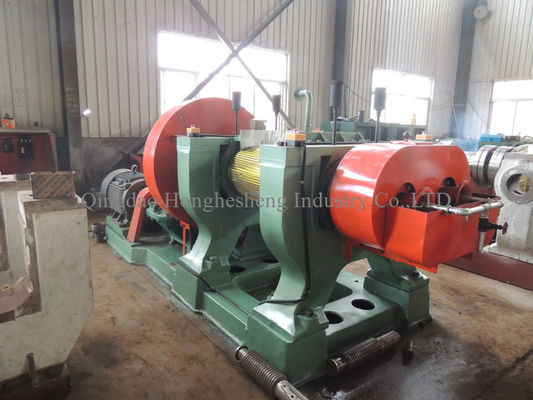

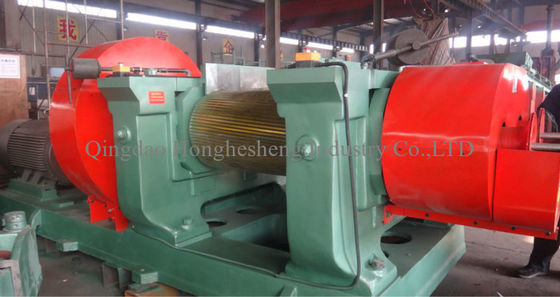

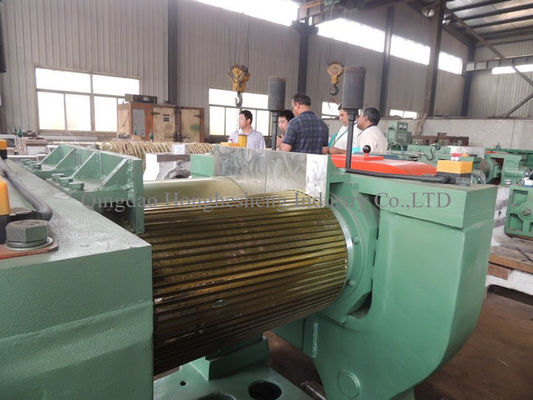

Detailed pictures
