Product Details:
|
| Place Of Origin: | Shandong, China | Max Working Press: | 0.65MPa |
|---|---|---|---|
| Warranty: | 1 Years | Core Components: | PLC, Pressure Vessel |
| Color: | Customer's Requirements | Advantage: | Full Automatic |
| Certification: | ASME CE, ASME CE | Key Selling Points: | Easy To Operate |
| Voltage: | 220V/380V/450V | Dimension(L*W*H): | 3200*2200*2300MM |
| Weight: | 64000 KG | Curing Time: | 2.6~3h |
| Power: | 110 KW | Temperature: | 95~120℃ |
| High Light: | Tire Retreading OTR Chamber,PLC Tire Retreading Equipment,Automatic Tire Retreading Equipment 110kW |
||

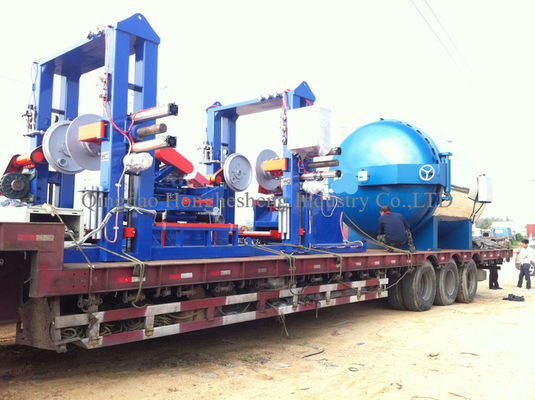

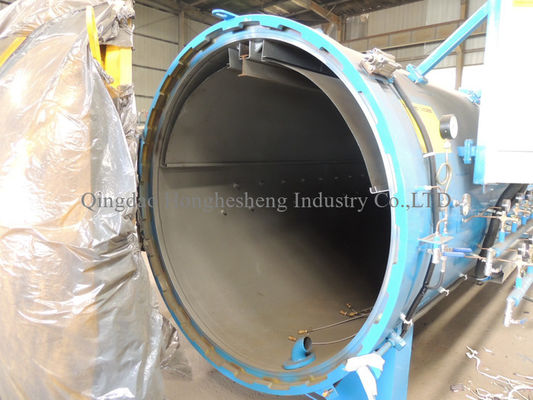

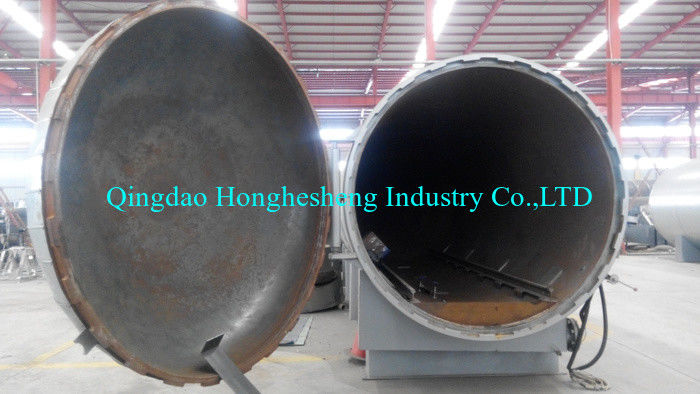

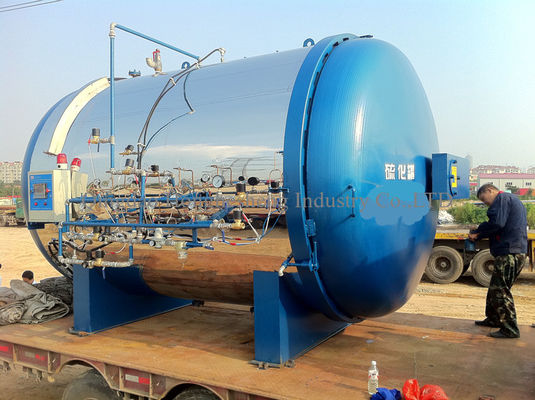

Tire retreading equipment OTR Chamber
introduction
1, Automatic temperature, pressure and timing controlling. Automatic curing data recording and saving. Equipped with data searching and printing function.
2, The DPC pressure is accurately controlled. The warning and error detecting functions work well, due to the joint working of several security devices .
3, Heating method of the chamber can be customized to electrical heating, steam heating or oil heating.
4, Customize the size according to customer requirements,From 13.00-24 "to 40.00 x57"
| Tyre number12.00R20 | 12 | 14 | 16 | 18 | 22 | 25 |
| Theoretical steam consumptionkcal/h | 43000 | 52000 | 60000 | 65000 | 70000 | 90000 |
| Electric hot-tube power--electrickw | 50 | 60 | 70 | 75 | 80 | 100 |
| Electric hot-tube power--steamkw | 8 | 8 | 9 | 9 | 12.5 | 12.5 |
| Fan motor powerkw | 4 | 4 | 5 | 5 | 11 | 11 |
| Width--uncovered mm | 5900 | 6600 | 7400 | 7800 | 8900 | 9900 |
| Width--covered mm | 5100 | 5800 | 6600 | 7100 | 8100 | 9100 |
| Practicable work widthmm | 3600 | 4200 | 5000 | 5500 | 6800 | 7500 |
| heightmm | 2200 | |||||
| depthmm | 2900 | |||||
| weightt | 4.6 | 4.9 | 5.3 | 5.52 | 5.9 | 6.4 |
| Designed pressureMPa | 0.9 | |||||
| Maximum work pressureMPa | 0.8 | |||||
| Experimental pressureMPa | 1.1 | |||||
| Designed temperature(c) | 180 | |||||
| Power supply | AC380V,AC220V,50HZ | |||||
| Compressed air sourceMPa | 0.8 | |||||
