Product Details:
|
| Heating Platen Size: | 550X550*4 | Mold Closing ForceF: | 100/120/160T |
|---|---|---|---|
| Plate Clearance: | 150-300mm | Working Layers: | 1 |
| Motor Power: | 5.5/7.5KW | Overall Dimension: | 2200X900X2200mm |
| Weight: | 4000KG | Type: | Vulcanizer,tile Machine |
| Color: | Blue,Customizable | Power Source: | Hydraulic |
| Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour | Keyword: | Tile Vulcanizing Press |
| High Light: | Rubber Floor Vulcanizing Press Machine,Gym Rubber Floor Vulcanizing Press Machine,ISO Rubber Molding Press Machine |
||
product description

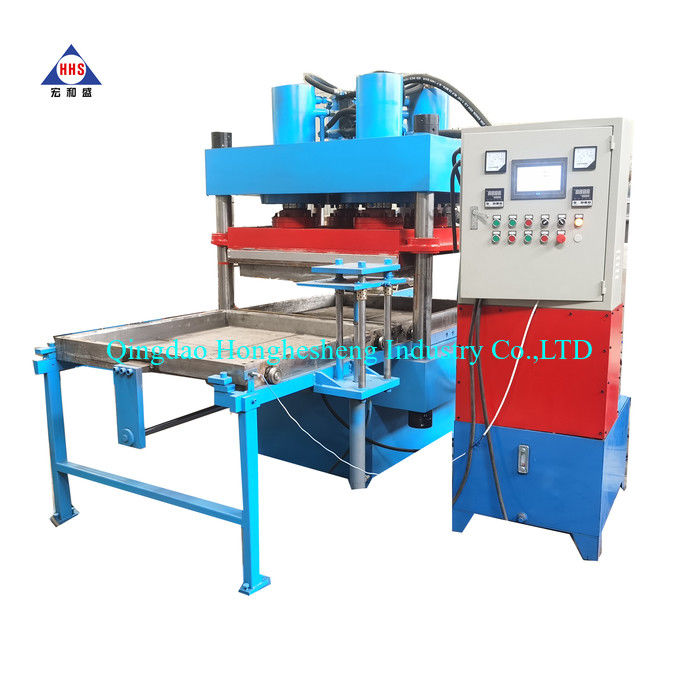

Rubber Molding Press Machine.
1.The machine adopts the advanced PLC control . The working program can be set in the cabinet and machine will work according to this program
2.Most spare parts for hydraulic system are imported from Taiwan
3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from Schneider France ,which can stabilize machine performance
Technical Parameters
| Parameter/model | XLB 1200*1200*1 |
| Pressure(T) | 1100*1100*60 |
| Hot plate size (mm) | 150-300 |
| Working layer | 1 |
| Hot plate quantity | 2 |
| Piston stroke(mm) | 150-300 |
| Motor power(kw) | 5.5/7.5 |
| Weight(kg) | 4000 |

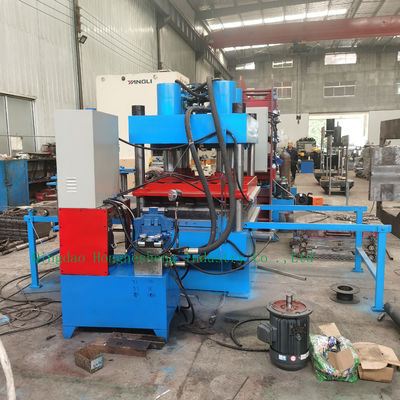

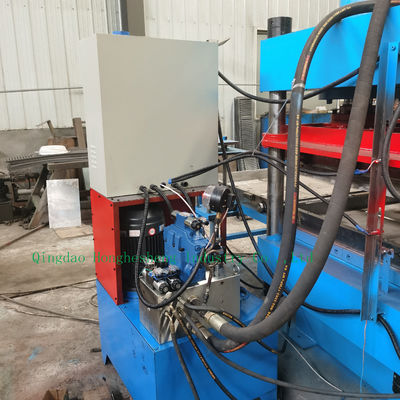

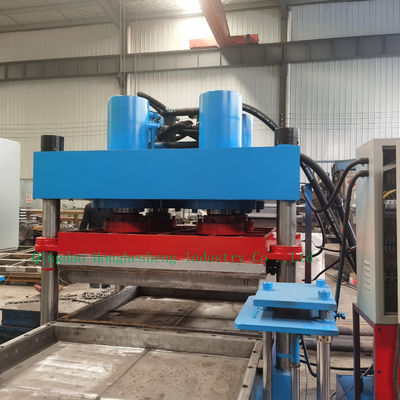

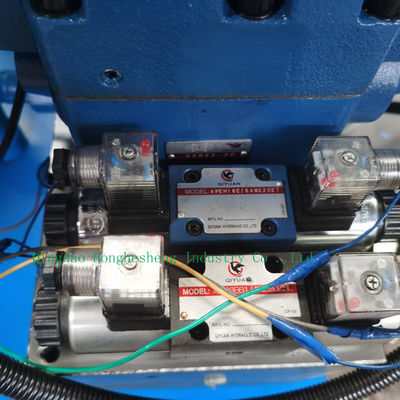

Detailed Pictures
