Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | High Production | ||
| High Light: | CE Hydraulic Vulcanizing Press Machine,Steam Heating Rubber Vulcanizing Press Machine,300 Degree Plate Vulcanizing Press |
||
Rubber Hydraulic Vulcanizing Press Machine
1. Introduction
can be applied to various kinds of silicone product manufacturing, such as portable wristband, bracelet, kitchen items, bangle, silicone mobile phone cover, silicone usb case, silicone label, silicone keychain, promotional gift, debossing or embossing bracelet, food mold, accessories, Remote controller button, mat and more.
Rubber/Silicone Products Heat Press Machine/Equipment/Vulcanizing has two head work station, full automatic push and pull the heating plate, high effecitive and save labor.
|
Parameters/version
|
XLB350*350*2 |
XLB400*400*2 |
XLB500*500*2 |
XLB600*600*2/4 |
XLB750*850*2 |
XLB1000*1000*2 |
| Mould closing force | 0.25 | 0.5 | 0.8 | 1.0 | 1.6 | 2.5 |
| Hot plate spacing | 125 | 125 | 125 | 125 | 125 | 200 |
| Hot plate layer | 2 | 2 | 2 | 2/4 | 2 | 2 |
| Plunger stroke | 250 | 250 | 250 | 250/500 | 250 | 400 |
| Heating way | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/Stream | Electricity/stream |
| Main motor power | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| The thermal power | 2.4kw/board | 3kw/board | 3kw/board | 7.5kw/board | 9kw/board | 10.8kw/board |
| Size(l*w*h) | 1450*400*1350 | 1600*400*1440 | 1450*690*1818 | 1880*780*1660 | 2100*1010*1900 | 2400*960*2500 |
| Weight(kg) | 1200 | 1500 | 1700 | 2500/3100 | 3560/4300 | 8300 |

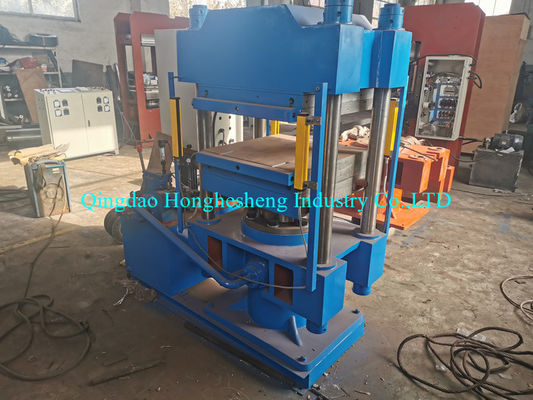

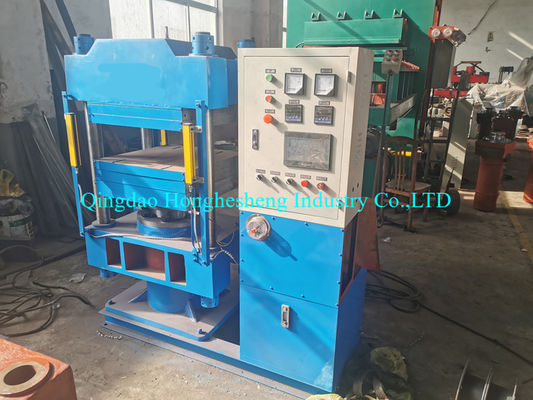

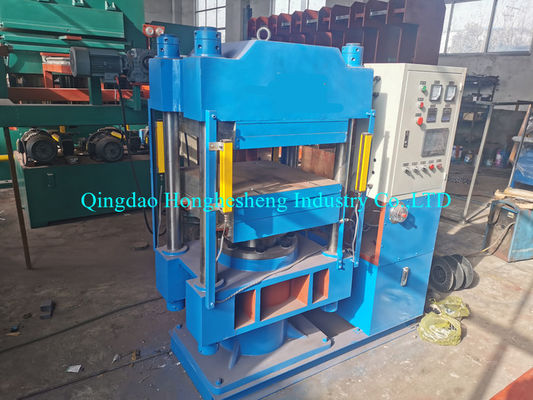

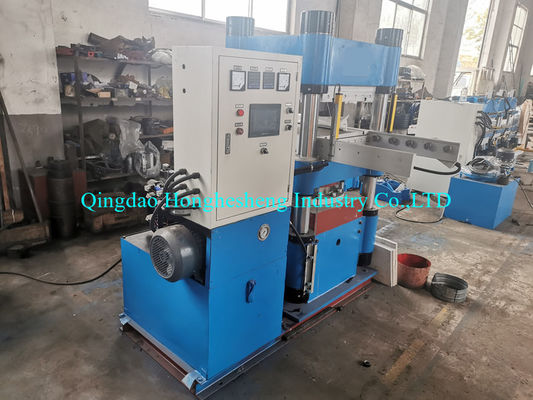

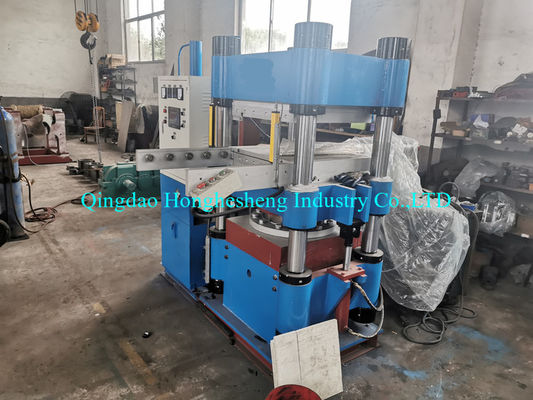

◊Machine Pictures:
