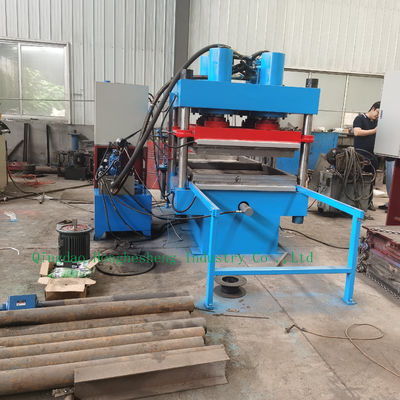

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling

Certification
China Qingdao Honghesheng Industry Co., Ltd. certification
I'm Online Chat Now

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling
Vulcanized Rubber Tile Press Machine For Waste Tire Recycling
Vulcanized Rubber Tile Press Machine For Waste Tire Recycling Vulcanized Rubber Tile Press Machine For Waste Tire Recycling Vulcanized Rubber Tile Press Machine For Waste Tire Recycling Vulcanized Rubber Tile Press Machine For Waste Tire Recycling Vulcanized Rubber Tile Press Machine For Waste Tire Recycling Vulcanized Rubber Tile Press Machine For Waste Tire Recycling

Large Image :  Vulcanized Rubber Tile Press Machine For Waste Tire Recycling

Product Details:
Place of Origin: CHINA
Brand Name: HHS
Certification: CE/ISO
Model Number: XLB-550X550
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD:4000 /SET
Packaging Details: wood package/20-40 gp
Delivery Time: 15 working days
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling

Description
Heating Platen Size: 550X550 Mold Closing ForceF: 50T
Plate Clearance: 150mm Working Layers: 1
Motor Power: 2.2KW Overall Dimension: 2400*2100*3200mm
Weight: 3500KG Type: Vulcanizer,tile Machine
Color: Blue,Customizable Power Source: Hydraulic
Usage: Rubber Tile From Waste Tyre Granule, Glue, Colour Keyword: High Speed Press Machine
High Light:

Vulcanized Rubber Tile Press Machine

,

Hydraulic Rubber Tile Press Machine 50T

,

PLC Waste Tire Recycling Machine

Waste Tire Recycling Vulcanized Rubber Tile Press Machine

Product Description



1.feature:
1. we usually design as clients' products and details request. our machine is 4 working layers, 1 hour can made 8 pcs rubber floor. We can also according your needs. and decide the working layers.
2.the machine is matched with manual push-out device .
3. we also can provide the different size of the molds, from 20mm to 75mm thickness.
4. rubber mixer can also provided, if needed.
5. The press with 12 pcs molds and rubber mixer is only 8m3 of the flooring area, it can be LCL for loading, So the sea freight is very cheap.
6. We also can according to the customers' requirement, and design the non-standard type of rubber tile vulcanizing machine.
2. Advantage:
1. CE, ISO, SGS, excellent seal and long life.
2. High production efficiency, low mold-locking speed, protect mold.
3. Less energy consumption, low noise, without oil spilling or off pressure.
4. Reliable structure, easy to be operated.



Main Technical Prameter:

Model
XLB-50T
XLB-120T/200t
Clamping force
50t
120T
Max system pressure
21Mpa
21Mpa
Stroke
450mm
200mm
Rapid clamping speed
60mm/s
60mm/s
Plate size
550*550mm/customized
1050*1050/customized
Daylight
350mm
350mm
Working layer
customized
customized
Max temperature
300C
300C
Motor
3kw
4kw
control

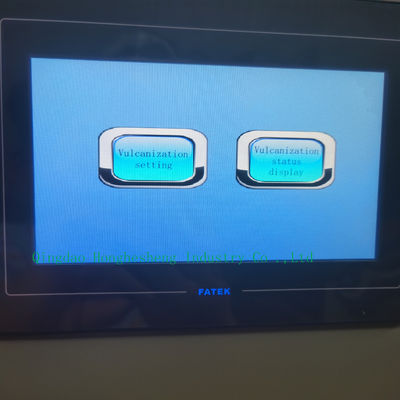

PLC+HIM
PLC+HIM



Remarks:

Heating platen size, space of heating platen, layers, ways of heating could be produced as customer's requirement.

We also can according to the customers' requirement, and design the non-standard type of rubber tile press.



Service:

1. one year guarantee and life long maintaince.

2. Any problem, we will feed back within 24 hours.


We can make non-standard machine according to customer's requirement.



Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 0Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 1Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 2Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 3Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 4Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 5Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 6Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 7





Down Stroke Type rubber interlock brick making machine/rubber tiles production equipment

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 9Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 10Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 11Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 12Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 13Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 14Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 15

Didfferent molds different kinds of rubber tiles(molds can be customized)

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 16Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 17

Auxiliary machine for rubber tile

High speed blender for glue and color

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 18

Low speed blender for rubber block and glue

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 19

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 20

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 21

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 22Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 23

Vulcanized Rubber Tile Press Machine For Waste Tire Recycling 24
