We can design various kinds of non-standard plate vulcanizing pressures according to you requirements.
Details of vulcanizing press:

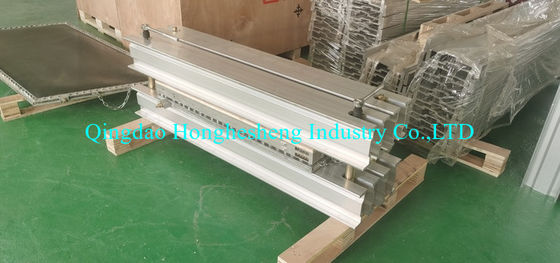

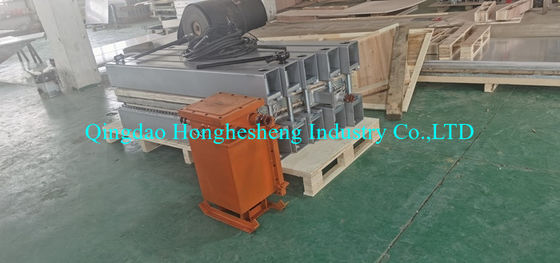

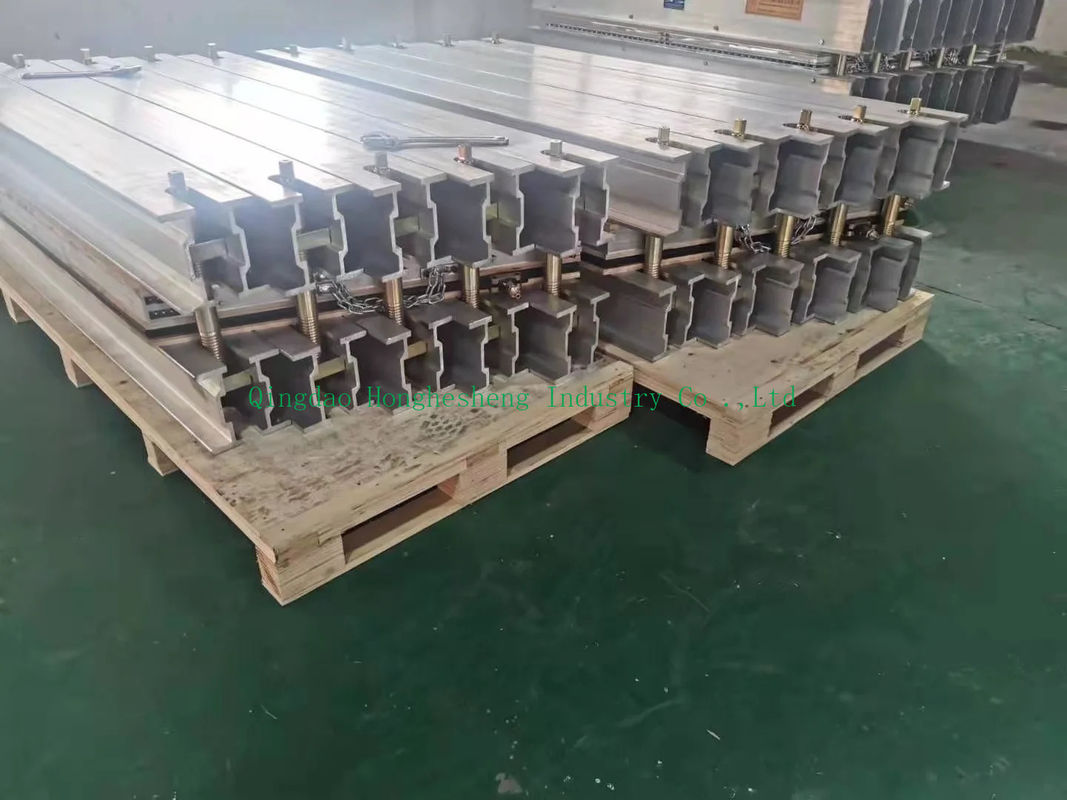

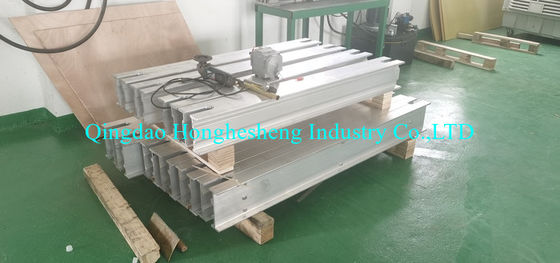

Conveyor Belts Joint Vulcanizing Press (ZLJ-1000*830)
The pressure water bladders :
1. The weight is very light than the normal ones, it is about a quarter of the normal ones
2. With large amplitude expansion: when pressing, the screws beside on the machine can fixed easily by hand.
3. Uniform pressure, and 70-100mm bigger around the hot plate than the common machines.
4. With big pressure at about 3.0Mpa
5. No leaking: no leaking even in the high pressure and long working time
Heating system with soft mat:Our heating plate is adopt "carpet heating" with soft surface ,uniform heating of conveyor belt and energy conservation.
Our conveyor splicing belt adopts Canadian technology and please finds the advantages as follow.
1. With light-weight and easy to hand and move.
2. Quickly increase temperature, uniform heating.
3. Waterproof: Can be used in damp or water environment, not conduct electricity
| Model | Belt width(mm) | Power(kw) | Dimensions | Weight(kg) | Single most important |
| (L*W*H mm) | |||||
| ZLJ-650*830 | 650 | 9.5 | 1370*830*630 | 430 | 45 |
| ZLJ-650*1000 | 10.8 | 1370*1000*630 | 500 | 66 | |
| ZLJ-800*830 | 800 | 11.2 | 1520*830*630 | 535 | 70 |
| ZLJ-800*1000 | 13.5 | 1520*1000*630 | 575 | 79 | |
| ZLJ-1000*830 | 1000 | 14.1 | 1720*830*630 | 595 | 82 |
| ZLJ-1000*1000 | 15.7 | 1720*1000*630 | 620 | 95 | |
| ZLJ-1200*830 | 1200 | 16.5 | 1920*830*710 | 800 | 96 |
| ZLJ-1200*1000 | 17.2 | 1920*1000*710 | 870 | 113 | |
| ZLJ-1400*830 | 1400 | 18.6 | 1930*830*760 | 930 | 107 |
| ZLJ-1400*1000 | 20.7 | 2120*1000*760 | 1180 | 132 | |
| ZLJ-1600*830 | 1600 | 21.5 | 2320*830*800 | 1270 | 120 |
| ZLJ-1600*1000 | 22.3 | 2320*1000*800 | 1460 | 146 | |
| ZLJ-1800*830 | 1800 | 23.3 | 2520*830*850 | 1380 | 137 |
| ZLJ-1800*1000 | 25.6 | 2520*1000*850 | 1650 | 164 | |
| ZLJ-2000*830 | 2000 | 27.2 | 2720*830*950 | 1760 | 154 |
| ZLJ-2000*1000 | 30 | 2720*1000*950 | 1860 | 182 | |
| ZLJ-2200*830 | 2200 | 29.2 | 2920*830*950 | 1860 | 165 |
| ZLJ-2200*1000 | 34.1 | 2920*1000*950 | 1970 | 198 |
