Flow chart of rubber floor tile making machine:

Mixing:

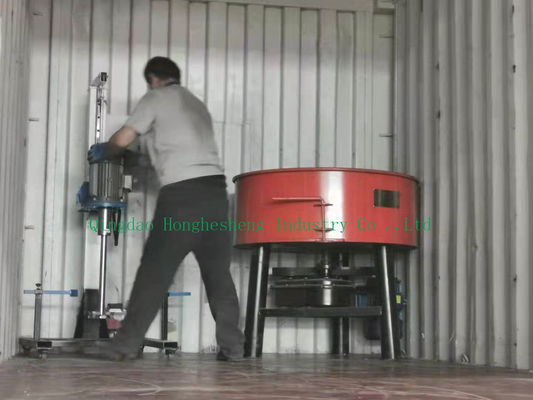

Pour the rubber ranules and coloring pigment into the rubber mixing machine, with some adhesive, then begin stiring. It will take 4-6 mins to be done.

Weighing:

weigh the stirred rubber powder according to the floor tiles thickness you want to make.

Paving and Pressing:

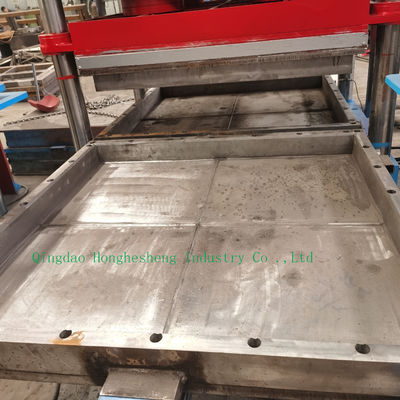

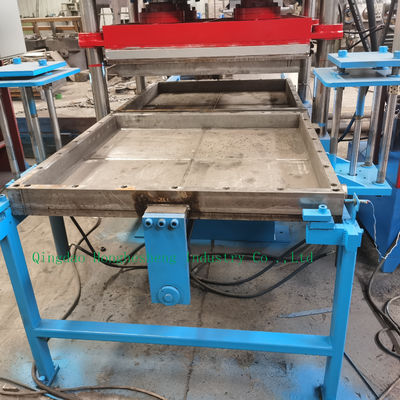

pour the needed quantity rubber powder into the mould, and float it by trowel. On the bottom ,can be with some coarse and black rubber powder, but on the surface should be with fine and colored powder, it can ensure your tiles quality.

Vulcanization Moulding:

Put the mould on the vulcanizer layer, generally , it take 3~8 mins to make the tiles,time difference based on the thickness of the tiles you ready to make. After finished, it will automaticlly separated, then put it somewhere to dry.

Inspecting:

Inspect the tiles' surface . If no aberration, no flaw, then it is of high quality products.

Main Technical Prameter:

Remarks:

Heating platen size, space of heating platen, layers, ways of heating could be produced as customer's requirement.

We also can according to the customers' requirement, and design the non-standard type of rubber tile press.

Service:

1. one year guarantee and life long maintaince.

2. Any problem, we will feed back within 24 hours.
