Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | High Production | ||
| High Light: | 500mm Piston Stroke Rubber Plate Vulcanizer,Steam Heating Rubber Plate Vulcanizer,Plate Vulcanizing Press 3.0kW |
||
This machine belongs to large vulcanizing machine series, mainly for the rubber vulcanization, generally use the frame type structure. Its unique features are:
1.compact structure, beautiful modelling and strong clamp force
2.Per working position can be heated to 220 degree Celsius (adjustable), the lower template can control temperature in room temperature condition to form an effective temperature difference
3. its unique double temperature station structure and high pressure characteristics are used in all kinds of reflective materials products such as trademark , etc.
parameter
| Item | XLB-D(Y)1000*1000*1 | XLB-D(Y)1200*1200*1 | XLB-D(Y)1500*1500*1 |
| Nominal molding power | 1.60-2.00MN | 3.15MN | 4.00-5.00MN |
| Working layer number | 1 | 1 | 1 |
| Piston stroke | 250-500mm | 250-500mm | 250-500mm |
| Main motor power | 3.0kW | 3.0kW | 3.0kW |
| Plate clearance | 125-500mm | 125-500mm | 125-500mm |
| Heating method | Steam,ecectricity | Steam,ecectricity | Steam,ecectricity |
| Configuration | Frame | Frame | Frame |
| Electric pipr heating power | 12kW | 15.6kW | 27kW |

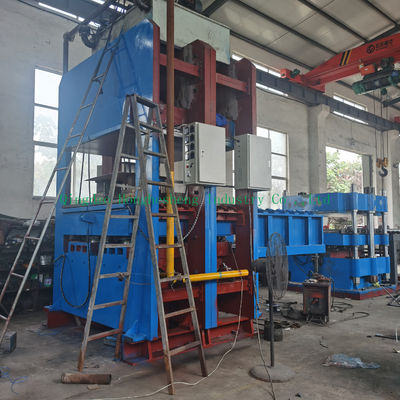

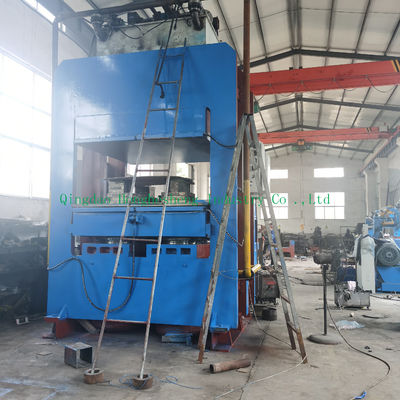

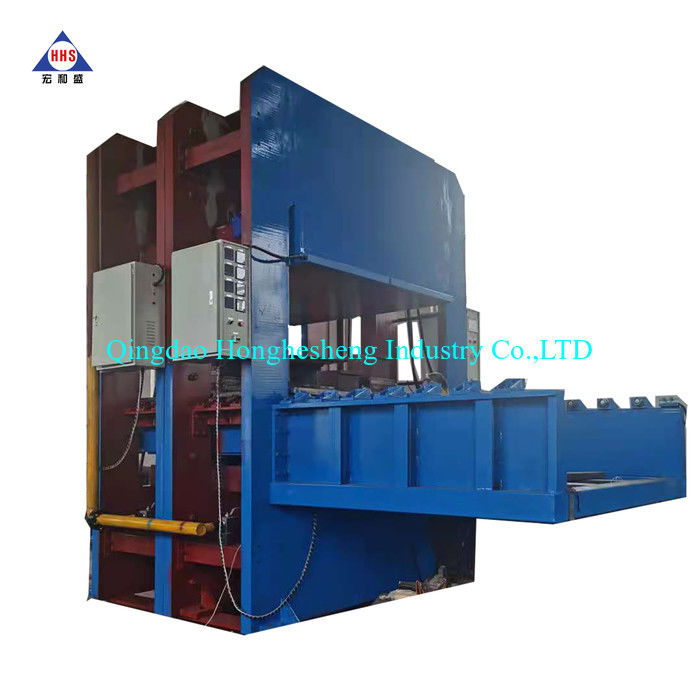

◊Machine Pictures:
