Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Tensile Testing Machine |
|---|---|---|---|
| Voltage: | 220V/380V/450V | Power(w): | 22KW |
| Weight: | 300KG | Dimension(l*w*h): | 660*570*1300mm |
| Warranty: | 2 Year | Condition: | New |
| High Light: | Electronic JLH Tensile Testing Machine,Tensile Testing Machine For Calibration,Rubber Lab Equipment 100kg |
||
Description:
Materials Strength Tester/computer universal test machine have a intelligence computer test system for universal testing.the operator will be get the date from the pc window like curve process, multi-sensor support, image interface, flexible data process and powerful system function.
This universal test machine uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the screen.
Design Standard:
ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
Standars Specification:
| Item | Description |
| Frame capacity | 100kg-5T( can be optional ) |
| Load cell brand |
Germany brand load cell for high accuracy 5000kg (1000,2000kg are optional) |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1000mm including fixture |
| Horizontal test space | ≤420mm |
| Test speed | 0.1~300mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |

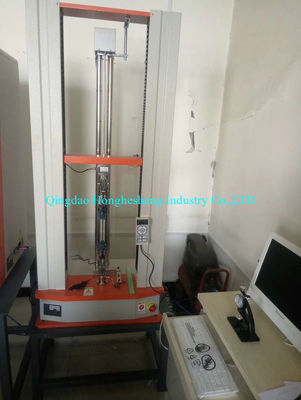

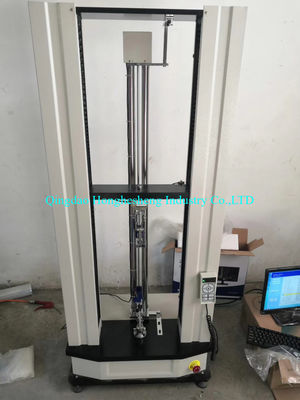

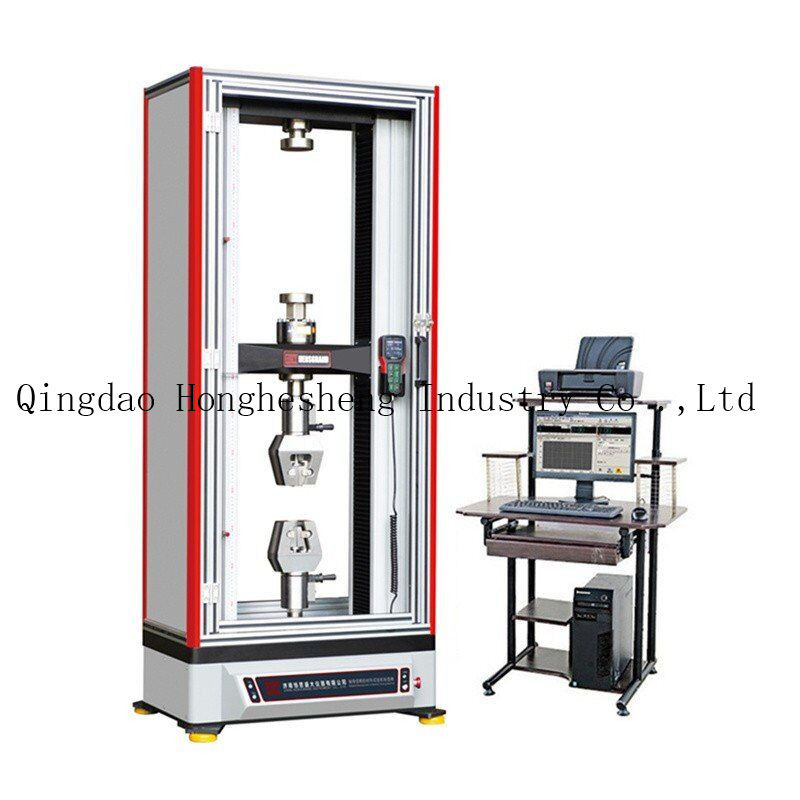

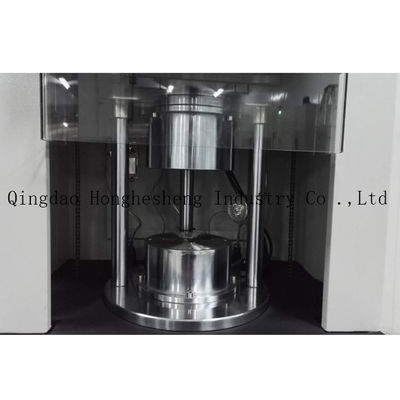

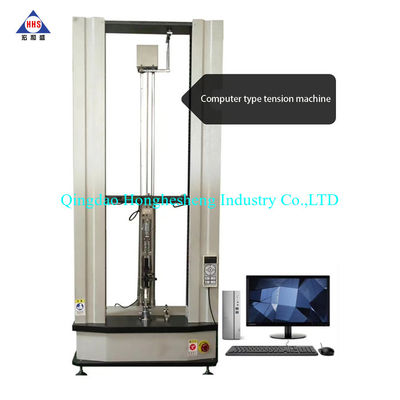

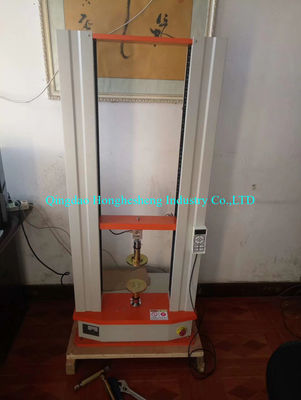

Detailed pictures
