Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing

Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing
Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing
Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing

Large Image :  Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing

Product Details:
Place of Origin: Qingdao Shangdong
Brand Name: HHS
Certification: CE
Model Number: XLB50-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 4000-10000
Packaging Details: standard wood package or based on clients request
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets/Year
Contact Now

Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing

Description
Type: Vulcanizer Colour: Blue White,customized
Voltage: Customized Power(W): 5.5KW
Temperature: 300 Degree Working Layers: 1-4layers
Plates: 300-2100mm Hot Plates Material: Q-235 Material.
Heating: Electricity , Steam Heating , Conduction Oil Heating . Weight: 3000 Kg
Advantage: High Production
High Light:

Rubber Plate Hydraulic Vulcanizing Machine

,

Four Column Hydraulic Vulcanizing Machine

,

Rubber Ring Hot Pressing Machine

Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing Machine Rubber Ring Hot Pressing Machine



1. Product Application

This machine is suitable for vulcanization of all kinds of rubber products, also widely used in solid plastics, foams, building decoration materials, decorative products pressing molding. It has perfect function and compact structure. Automatic temperature control, alarm, manual mold opening, automatic pressure, timing. PC controller can also be used according to user requirements, to achieve the whole process according to the preset work procedures to automatically complete the process.



2. Product Paramenters



odel
XLB-650X650
XLB-600X600
XLB-700X700
XLB-800X800/1000
Clamping force
250T
300T
350T
500T
Max system pressure
21MPA
21MPA
21MPA
21MPA
Stroke
300mm
300mm
300mm
300mm
Rapid clamping speed
60mm/s
60mm/s
60mm/s
60mm/s
Plate size
650*650mm
600*600mm
700*700mm
700*700mm
800*800mm
1000*850mm
Daylight
300mm
300mm
300mm
300mm
Working layer
customized
customized
customized
customized
Max temperature
300C
300C
300C
300C
Motor
7.5kw
7.5kw
11kw
13kw
Control
PLC+HIM
PLC+HIM
PLC+HIM
PLC+HIM
Model
XLB-50T
XLB-100T
XLB-150T
XLB-200T
Clamping force
50t
100T
150T
200T
Max system pressure
21Mpa
21Mpa
21Mpa
21Mpa
Stroke
250mm
250mm
300mm
300mm
Rapid clamping speed
60mm/s
60mm/s
60mm/s
60mm/s
Plate size
380*380mm
400/400mm
400*400mm
450*450mm
500*500mm
500*500mm
510*540mm
600*550mm
Daylight
350mm
350mm
350mm
350mm
Working layer
customized
customized
customized
customized
Max temperature
300C
300C
300C
300C
Motor
3kw
4kw
5kw
7.5 kw
control
PLC+HIM
PLC+HIM
PLC+HIM
PLC+HIM

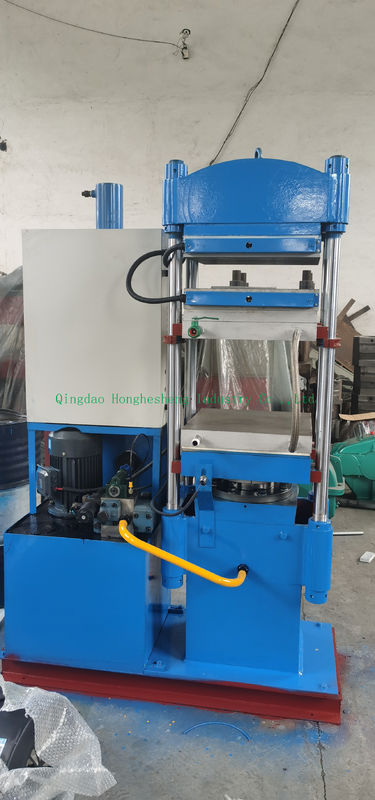

3. Picture

Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing 0





Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing 1Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing 2

Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing 3Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing 4

Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing 5



Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing 6Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing 7Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing 8Rubber Plate Hydraulic Vulcanizing Machine Four Column Hot Pressing 9
