90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding

Large Image : 90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding

Product Details:

Place of Origin:	CHINA
Brand Name:	honghesheng
Certification:	CE
Model Number:	ZPS-900/1200

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD:850-60000/SET
Packaging Details:	wood package /20-40GP/HC
Delivery Time:	30 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 SETS/MONTH

Contact Now

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding

Description

Type:	Tire Shredder Machine	Power(w):	90kw~200kw
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Voltage:	380V/50HZ,Customer Request
Capacity:	More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h	Year:	New
Raw Material:	Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire	Color:	Customized
Discharge Size:	50*50mm Blocks	Tire Size:	Max 1200mm
High Light:	Passenger Car Waste Tyre Recycling Plant , Truck Waste Tyre Recycling Plant , 200kw Rubber Tire Shredder

TIRE RECYCLING PLANT ,passenger car and truck tires shredding

product Introduction

Direction for use of tyre shredding machines

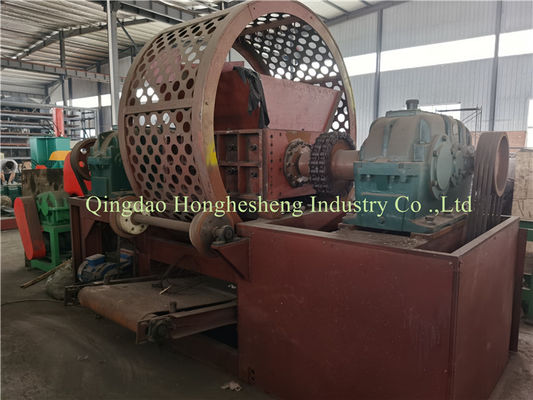

1. Double shaft shredder

Optimaʼs two shaft shredders are designed with an aggressive low RPM, high torque shredding technology. Each shaft is driven by its own Siemens motor, giving it plenty of power to drive through tyres and thick steel beads. The shredder blade thickness ranges from 25 mm to 152 mm (1’’-6”) depending on the type of tires, throughput, and desired end product. The shredder machine can process OTR tires, truck tires, and car tires at a rate of up to 10 tons per hour.

2. Grater

The Grater machine is the ultimate machine for mid-stream grinding and steel separation. It is specially designed to process pre-shredded tires chips and produce between 25-12 mm (1" - 0.5") wire free rubber mulch. And the Grater can process up to 6 tons of input per hour. The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber. Another unique feature of this machine is the ability to turn the knives once before having to send them to be sharpened or replaced, minimizing operating costs.

3.Granulator

The Granulators are designed to grind the rubber mulch from the Grater into small granules as ﬁne as 1 mm. The granules are screened and re-circulated until the desired size is reached. Due to the design of the Granulator and precise alignment of the blades, the Granulator produces a very uniform cut and high quality granule. During the granulation process, 99% of the ﬁber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.

Product Parameter

Model	YX-600	YX-1400
Spindle power	4-15*2KW	4-55*2KW
Spindle speed	18-20r/min	14-35r/min
Capacity	2-3t/h	8-12t/h
Number of cutter pan	26	46
Diameter cutter pan	360	550
Broken size	3-10cm	3-10cm
Hopper size	820*900mm	2000*2000mm
Dimensions(mm)	260020001900	430017002400
Weight	2.5t	18t

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding 0

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding 2

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding 3

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding 4

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding 5

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding 6

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding 7

90kw 200kw Waste Tyre Recycling Plant For Passenger Car / Truck Tires Shredding 8
