Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 15kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/220V/450V |
| Year: | New | Dimension(L*W*H): | 1500X900X1300mm |
| Weight (KG): | 1000KG | End Product: | Traveler |
| High Light: | 15KW Waste Tiye Wire Removal Machine,Steel Waste Tiye Wire Removal Machine |
||

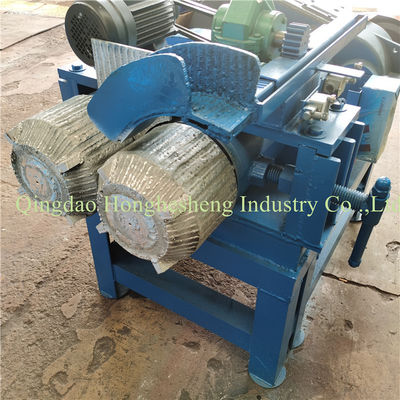

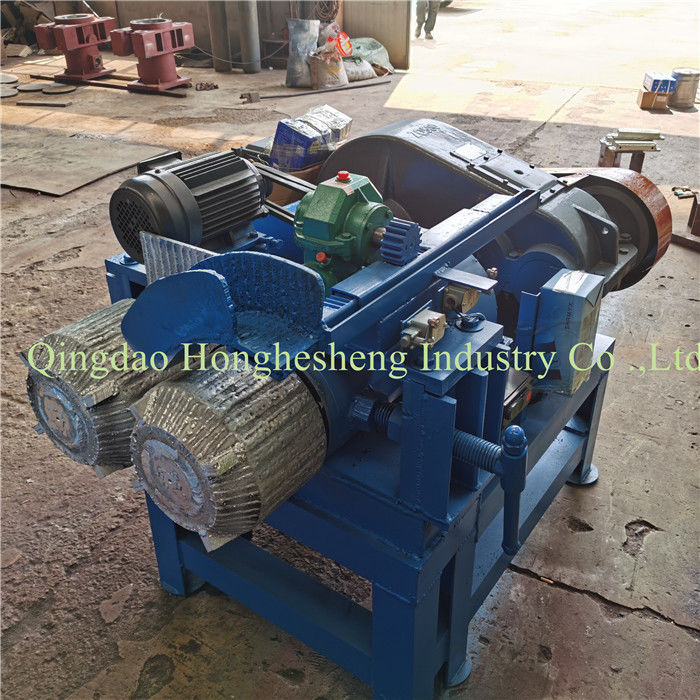

waste tire wire removing machine Tyre Bead Ring Cutter/Tire Wire Remover
Function:
Used to separate the steel wire from tire circle.
Operation principle:
The main working part of this machine is two relative rotary roll shafts with the same speed. When tire circle cut into the middle of two rollers, it will be extruded by roll shaft, at the same time, be squeezed, Sheared and tear by the two relative rotary rollers. And finally complete the separation of the steel wheel by many times.
Paremeter
| Item Name | Waste tyre recycling machine old tyre bead separator steel wire separator |
| Productivity | 120pcs/hour |
| Spindle Speed | 95r/min |
| Powder | 15KW |
| Dimension | 1500×900 × 1400mm |
| Weight | 1300KG |
Waste tire/tyre recycling plant
This machine is used to produce the waste tyre into rubber powder or rubber crumb. It consists of rubber crusher, ring cutter, strip cutter, block cutter, steel wire separator, fiber separator, vibrating screen, conveyor belt, Magnetic separator. Through ring cutter, trip cutter, lock cutter, processing tyre into 3.5cm block. Second, using XKP-350/400/450/560 rubber crusher, it can be a colloidal. Then using rubber screen, magnetic plant and conveyer. Separate steel and powder. It can be made 5-40mesh powder.
