Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50~60HRC | Bush: | Nylon Bush,bearing Bush,ball Bearing Bush |
| Voltage: | 380V,Customer's Request,380V/50HZ,220/380V,AC380V | Power(w): | 37kw,4.5KW,20KW,5KW For Lab Two Roll Mill |
| Weight: | 5200kgs,1000kg,2T | Dimension(l*w*h): | 1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm |
| Warranty: | 1 Year | Condition: | New |
| High Light: | 380V Open Roll Rubber Mixing Mill,Hard Toothed Rubber Mixing Mill,Electrical Nip Adjustable Open Mixing Mill |
||
production
This machie used for mixing,calendering and sheeting.
Roller is made of alloy chilled cast iron and surface is durable.
Oil or steam heating.
Main technical parameters:
|
Model
|
XK400x1000
|
XK450x1200
|
XK560x1830
|
XK610x2030
|
XK660x2300
|
XK760x2800
|
|
Front/back roll diameter(m)
|
400
|
450
|
560
|
610
|
660
|
760
|
|
Working length(mm)
|
1000
|
1200
|
1830
|
2030
|
2300
|
2800
|
|
Main motor power(kw)
|
55
|
75
|
132
|
185
|
220
|
260
|
|
Reduce speed box
|
Hard toothed
|
|||||
|
Type of drive
|
Cardan shaft
|
|||||

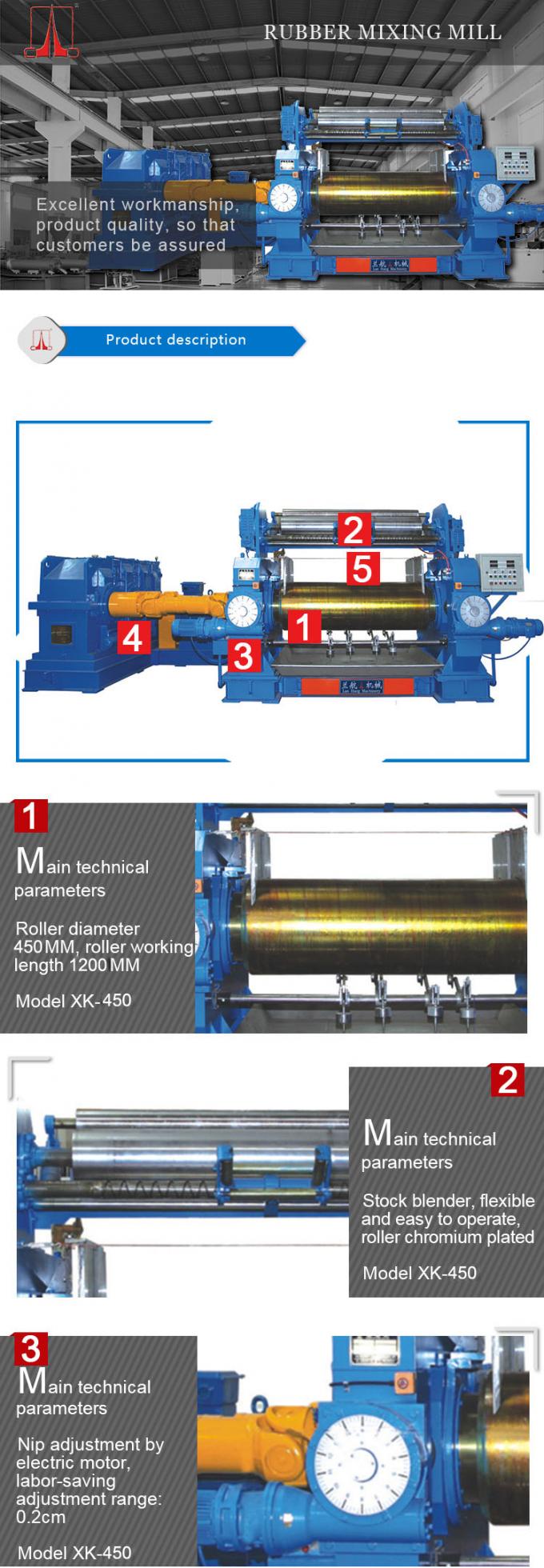

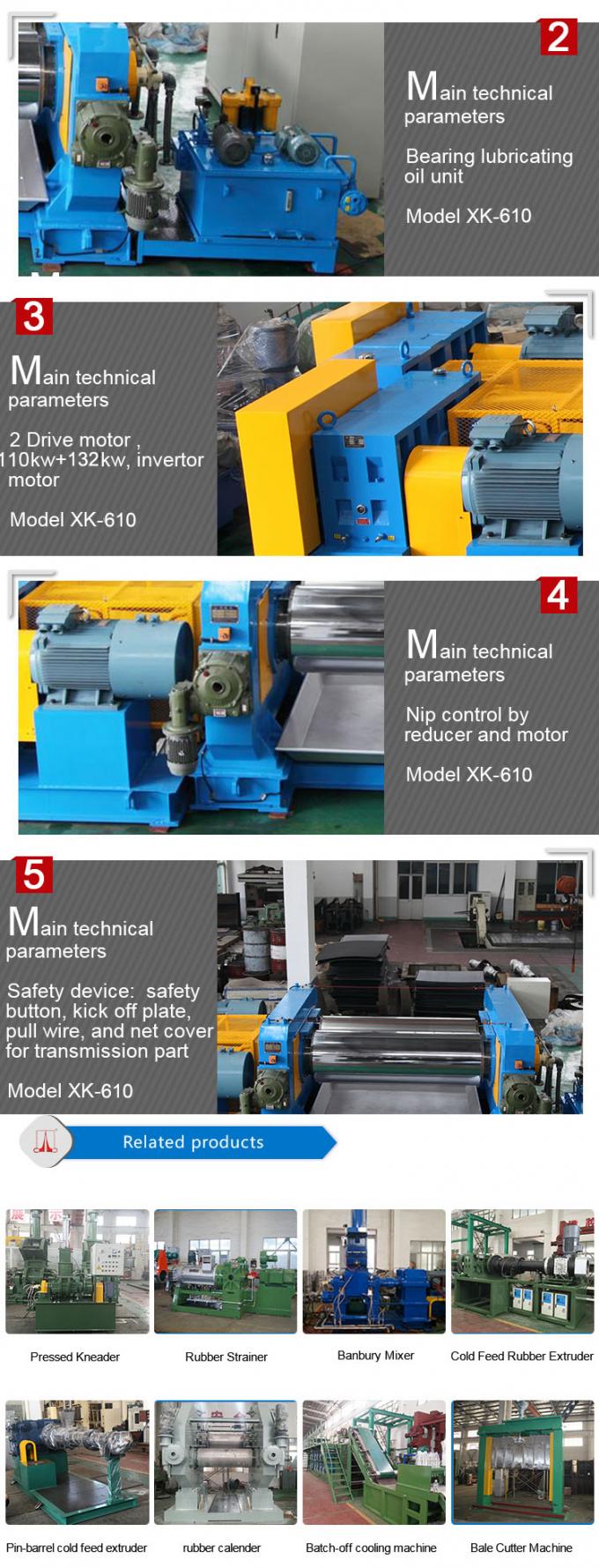

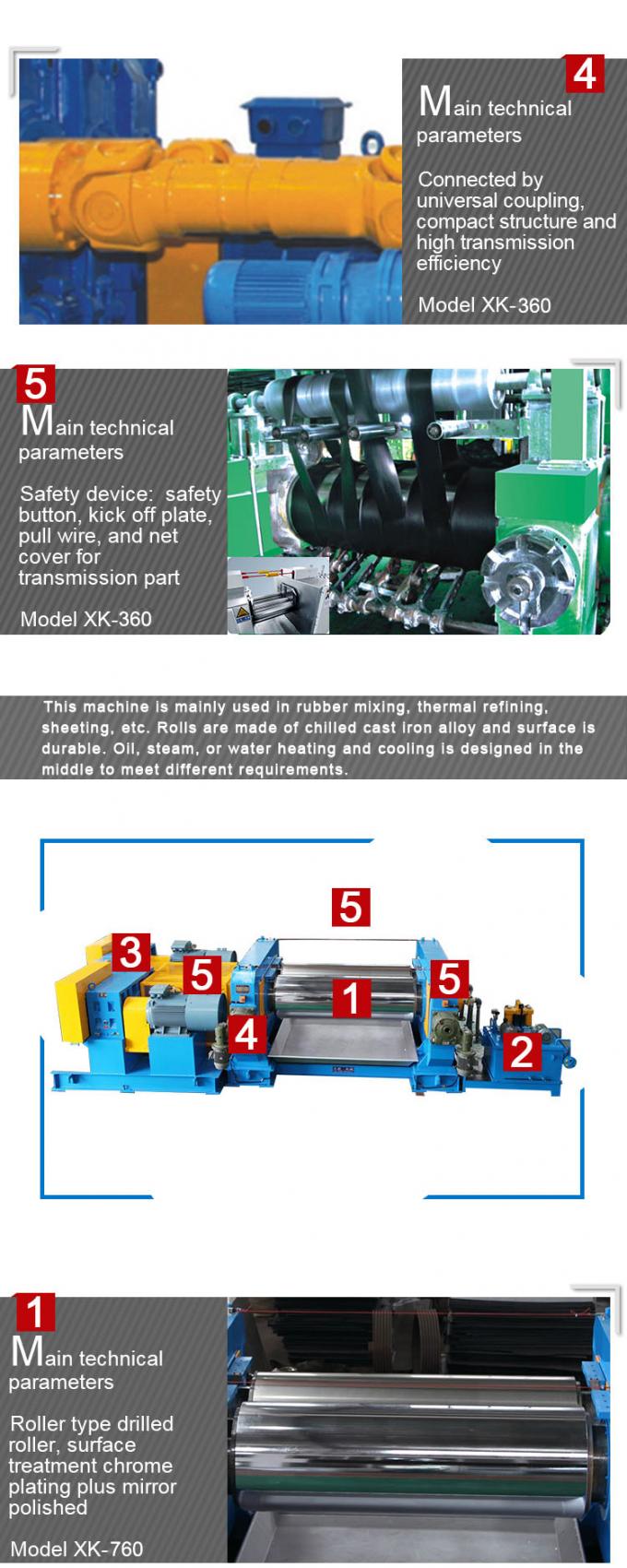

More detailed picture
