Product Details:
|
| Heating Platen Size: | 550X550*4 | Mold Closing ForceF: | 100/120/160T |
|---|---|---|---|
| Plate Clearance: | 150-300mm | Working Layers: | 1 |
| Motor Power: | 5.5/7.5KW | Overall Dimension: | 2200X900X2200mm |
| Weight: | 4000KG | Type: | Vulcanizer,tile Machine |
| Color: | Blue,Customizable | Power Source: | Hydraulic |
| Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour | Keyword: | Tile Vulcanizing Press |
| High Light: | Rubber Interlock Brick Making Machine,Down Stroke Interlock Brick Making Machine,1 Layer Interlock Brick Making Machine |
||
product description

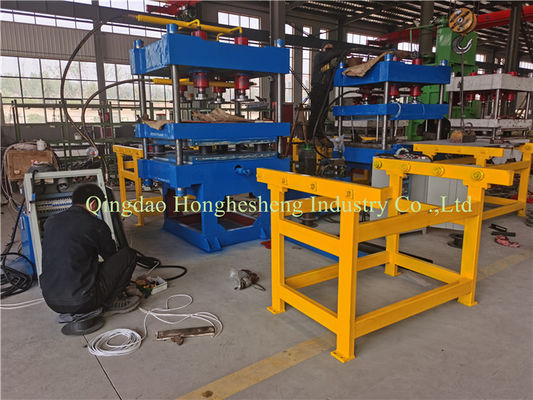

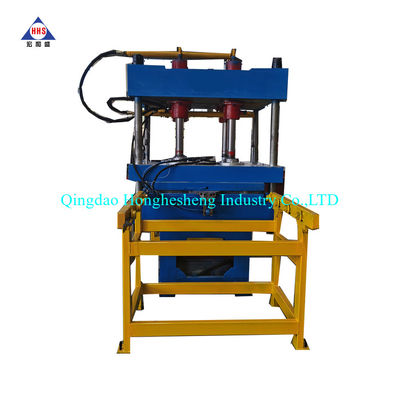

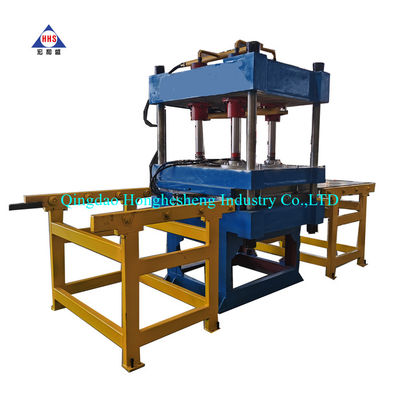

This machine is used to heat , vulcanize and solidify the rubber compound from mixer machine to be 500*500mm and 1000*1000mm rubber tiles .One set molds includes one top mold and two bottom mold . As showed in picture , the machine is equipped with adjustable rail device , which is used to push mold in and out for easy operation.
Configuration of rubber tile making machine
A: Vulcnaizing press Machine Frame: The material is Q345 steel welded, and using Co2 protection welding process. high strength, no air hole, not easy broken, then using the tempering process, to release the internal stress. can not out of shape, at last using the CNC machining center treatment.
B: Vulcnaizing press Machine Heating pipes: Stainless steel ,long using life, material is SUS304
C: Vulcnaizing press Machine Plunger: Vanadium and titanium Alloy Chilled Cast Iron, High hardness (68~72HS )and good abrasion , resistance, can not easy broke the seals
D: Vulcnaizing press machine Hydraulic cylinder: Nodular cast iron, the material is QT-500, hardness 68~72 HS, using the annealing treatment, and flaw detection process choose the best one.
E: The Vulcnaizing press machine heating plate :35# steel
F: Vulcnaizing press machine Thermal baffle: Silicon 3 Calcium plate, not easy broke seals
G: Vulcnaizing press machine Valve: Cartridge valve, not easy broken and no need maintain brand from Huade (China-Germany joint venture )
H: Hydraulic pump: Brand from YUCI YUKEN HYDRAULICS Co., LTD Japan brand
I: Vulcnaizing press machine Low-voltage apparatus: The brand from Schneider or Mitsubishi
PLC Details configuration of OULI Made Rubber Floor Tile Making Machine / Rubber Hydraulic Tile Vulcanizing Press
Configuration of Rubber Interlocking Tiles Vulcanizing Press Machine/Recycling Paving Tile Making Press Machine
Molds for Be Novel In Design New Style Crumb Rubber Tile Making Machine
Features
Manual push-pull mold
High output and efficiency
Easy and safe operating
Technical Parameters
| Parameter/model | XLB 1200*1200*1 |
| Pressure(T) | 1100*1100*60 |
| Hot plate size (mm) | 150-300 |
| Working layer | 1 |
| Hot plate quantity | 2 |
| Piston stroke(mm) | 150-300 |
| Motor power(kw) | 5.5/7.5 |
| Weight(kg) | 4000 |

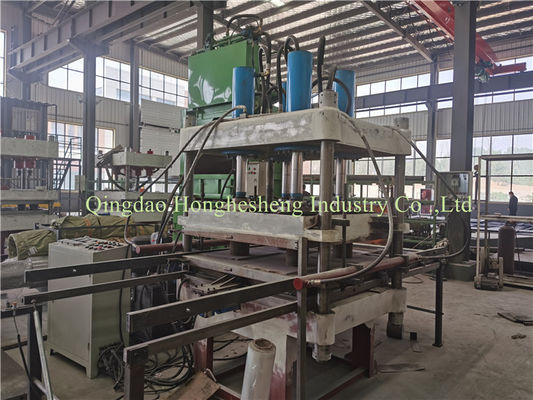

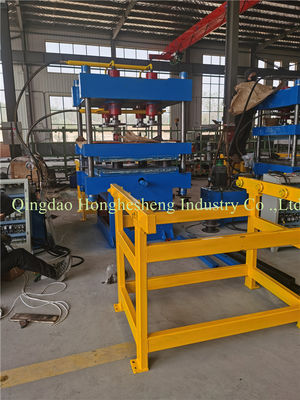

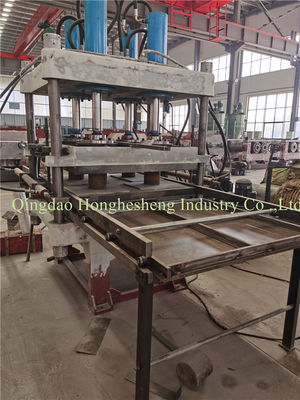

Detailed Pictures
