50T 150 Stroke Rubber Tile Vulcanizing Press 550x550

XLB-550*550*4 Rubber Bricks Making Machine/Making Machine Tiling Of Rubber Recycling

50ton Rubber Tile Vulcanizing Press Machine 550*550*4

The machine applies to vulcanizing various kinds of rubber and plastic model products as well as non-model products.
The machine is frame structure with below pressing form (upwards). Under the hydraulic pressure, the piston plunger ascends to make hot plate close for getting pressure, while the piston plunger descends (namely hot plate turning on) by deadweight of hot plate, platform and piston plunger to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).

1. Technical Parameters

Manual push-pull mold

High output and efficiency

Easy and safe operating

3. The Detailed Introduction

1) we usually design as clients' products and details request. our machine is 4 working layers, 1 hour can made 8 pcs rubber floor. We can also according your needs. and decide the working layers.

2) the machine is matched with manual push-out device .

3) we also can provide the different size of the molds, from 20mm to 75mm thickness.

4) rubber mixer can also provided, if needed.

5) The press with 12 pcs molds and rubber mixer is only 8m³ of the flooring area, it can be LCL for loading, So the sea freight is very cheap.

6) We also can according to the customers' requirement, and design the non-standard type of rubber tile vulcanizing machine.

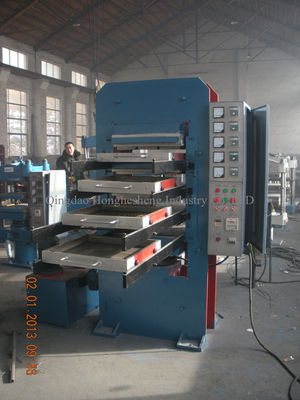

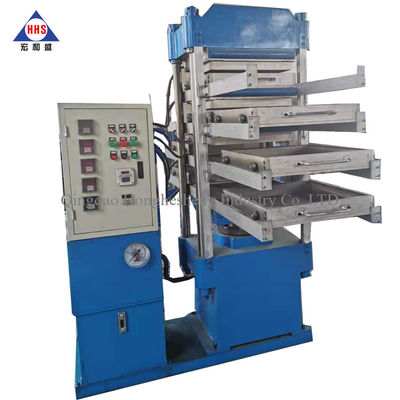

4. Detailed Pictures
