Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50~60HRC | Bush: | Nylon Bush,bearing Bush,ball Bearing Bush |
| Voltage: | 380V,Customer's Request,380V/50HZ,220/380V,AC380V | Power(w): | 37kw,4.5KW,20KW,5KW For Lab Two Roll Mill |
| Weight: | 5200kgs,1000kg,2T | Dimension(l*w*h): | 1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm |
| Warranty: | 1 Year | Condition: | New |
| High Light: | Nylon Bush Open Mill Rubber Mixing,37kw Open Mill Rubber Mixing,60HRC Open Mill Rubber Mixing |
||
production
Technical parameters:
| Version | XK-160 | XK-250 | XK-300 | XK-400 | XK-450 | XK-560 | XK-660 |
| Roll diameter(mm) | 160 | 250 | 300 | 400 | 450 | 560 | 660 |
| Working length of rolls(mm) | 320 | 620 | 750 | 1000 | 1200 | 1530 | 2130 |
| Front roll surface speed(m/min) | 8.99 | 15.3 | 15.1 | 18.65 | 24.32 | 27.72 | 28.6 |
| Friction ratio | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.24 |
| Max.nip (mm) | 4 | 8 | 8 | 10 | 15 | 15 | 15 |
| Capacity per.batch (kg) | 1-2 | 10-15 | 15-20 | 18-35 | 25-50 | 35-50 | 165 |
| Motor power (kw) | 5.5 | 18.5 | 22 | 37 | 55 | 90 | 245 |
| Overall dimensions(mm) |
1160*920 *1370 |
3120*1322 *1500 |
3580*1550 *1695 |
4350*1850 *1780 |
5670*2390 *1670 |
5845*2284 *1978 |
7465*3662 *2080 |
| Weight(kg) | 1000 | 4000 | 5200 | 7600 | 12000 | 23000 | 49000 |

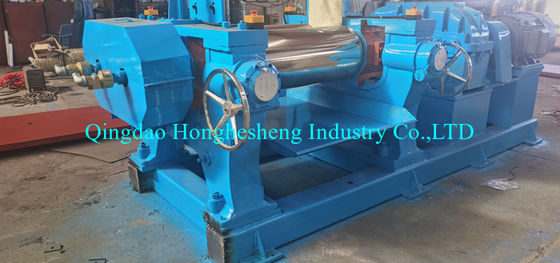

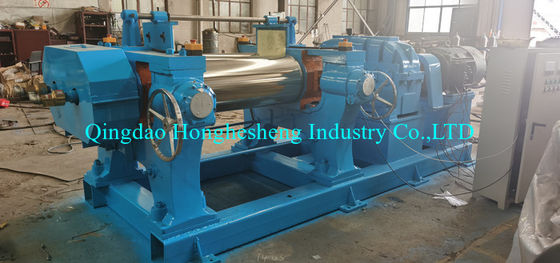

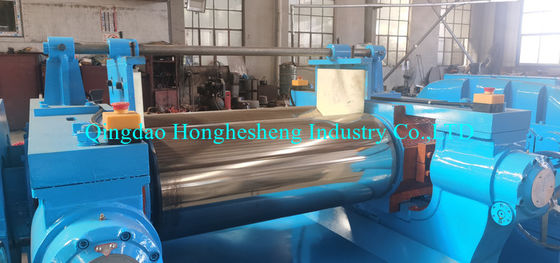

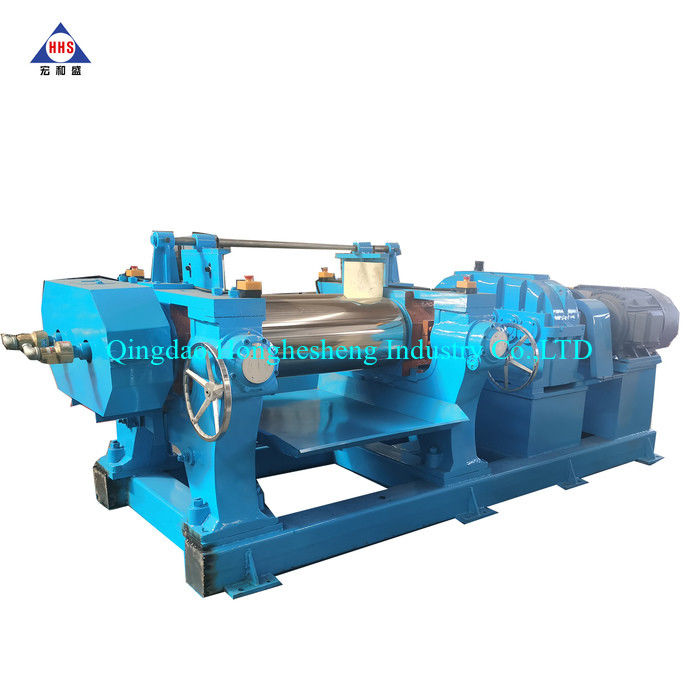

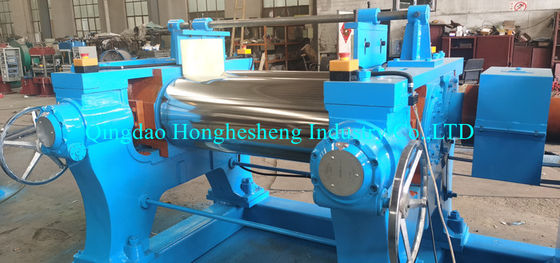

Detailed pictures
