Product Details:
|
| Type: | Vulcanizer | Colour: | All Colour |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | Max 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 3000 Kg |
| Advantage: | Effective |

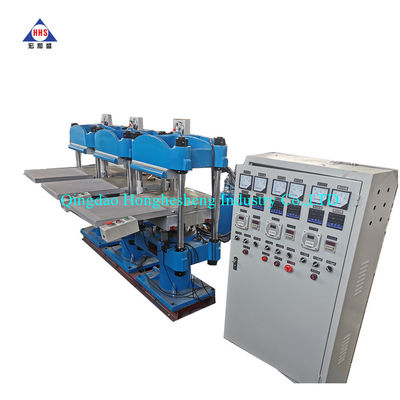

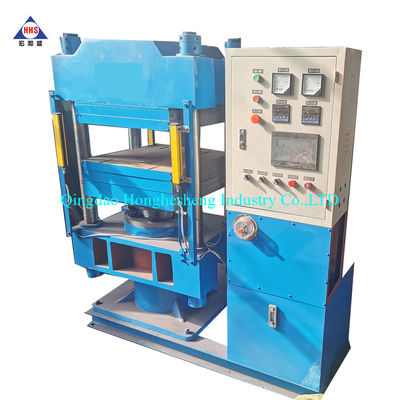

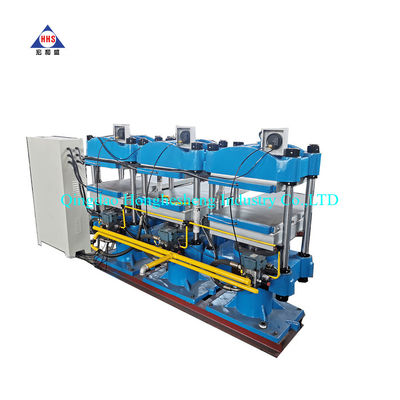

Rubber sole vulcanizing press machine mainly consists of cylinder , heating plate , piston , electrical cabinet , hydraulic station , etc . by cmobining smaller machne to be one whole unit , its production capacity is greatly enhanced .
Main Features
1.Automatic control : automatic mold closing , automatic exhausting , automatic heating and keep stable temperature, automatically timing for vulcanization , automatic alarming , automatic mold opening ,etc .
2.The temperature can be set in the electrical cabinet .
3.Vulcanizing time can be set in the time relay .
4.The pillar is made of high quality # 45 cast steel . The hardness , wear resistance and abrasive resistance is high improved by quenching and tempering
5.Heating plate is made of Q-235A ductile iron , It is processed by the high temperature aging treatment
