Product Details:
|
| High Light: | Fabric Horizontal Conveyor Cutter,Non Woven Horizontal Conveyor Cutter,Customized horizontal conveyor cutting machine |
||
|---|---|---|---|
1. Mainly uses

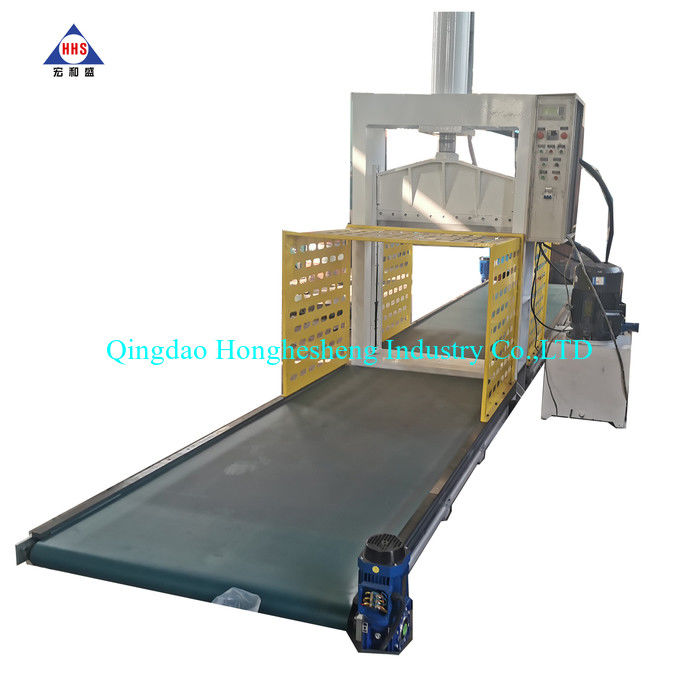

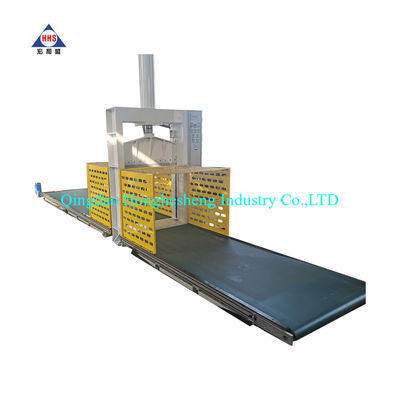

The bale cutter is mainly used to cut natural rubber, synthetic rubber, and other plastics materials, especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber. The cutter is matched with working track, which makes rubber feeding much more convenient
2. structure
This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife. When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder
3. Characteristics:
1. low noise
2. constant temperature 3. automatic pressure mataining and pressure supplement
4. It has solid construction, reasonable design, high production efficiency, easy operation.
5. Cutting knife is controlled by hydraulic system, and reciprocating motion.
6. CE standard ISO9001 certified.
4.paremeter:
| Product name : | New 660mm width Rubber Cutting Machine/Hydraulic Rubber Cutting Machine / Tyre Cutter |
| Meterial : | rubber and silicone meterial,reclaimed rubber ,natural rubber and so on |
| Cutting width : | 600mm to 700mm, can be customized |
| Cutting thickness : | 10mm to 50mm, can be customized. |
| Stroke : | 500mm, can be customized. |
| Pressure ton : | 5 ton - 12 ton, can be customizied. |
| Power motor : | 2.2KW / 3.7KW / 5.5KW, can be custom |
| Machine color: | Blue or green, can be customized. |
| Machine weight : | 600Kg - 1500Kg |
custmized
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
