Product Details:
|
| Model: | XY-3I 1730 | Roll Diameter (mm): | 610mm |
|---|---|---|---|
| Roll Working Length (mm): | 1730 | Roll Speed Ratio: | 1:01:01 1:1.4:1 |
| Middle-roll Linear Speed (m/min): | 5.4-54 | Adjusting Nip Range (mm): | 0-20 |
| High Light: | 610x1730mm Rubber Calender Machine,Rubber Calender Machine Length 1200mm,Fabric four roll rubber calender |
||

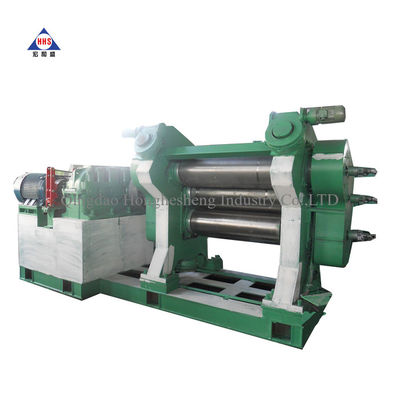

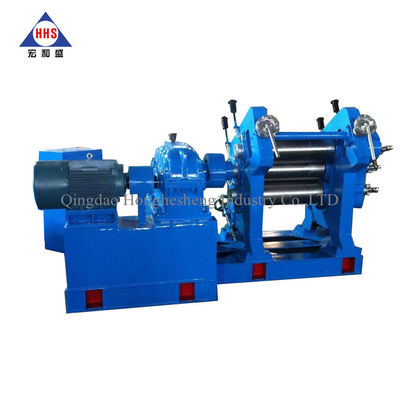

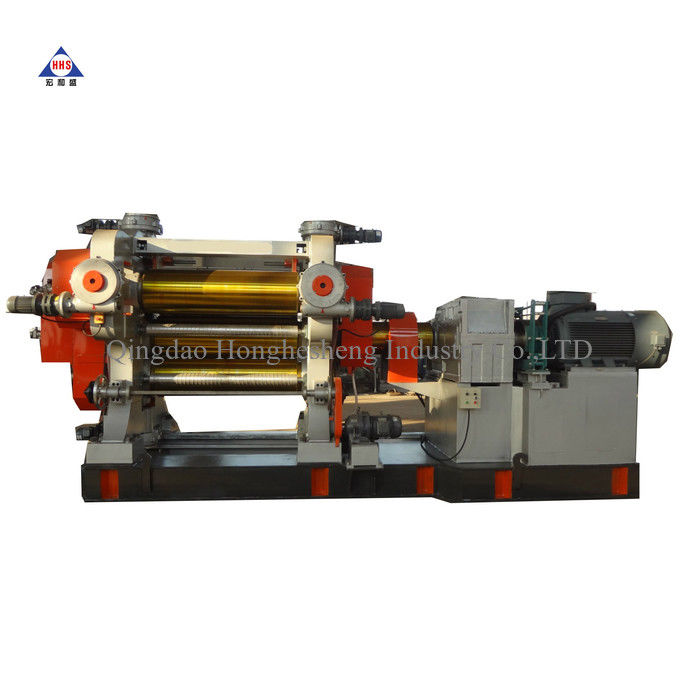

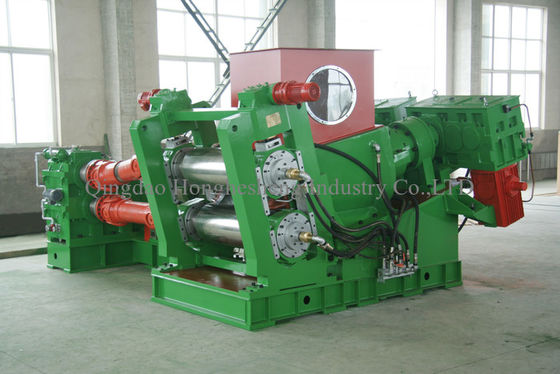

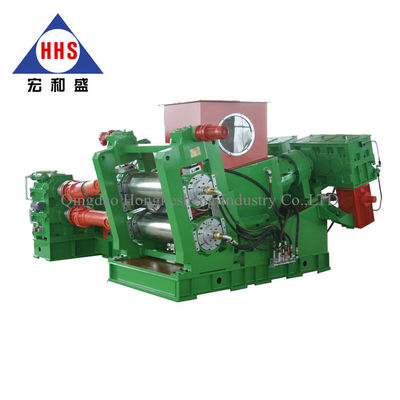

Four Roll Rubber Calender/ Calendering Machine/Fabric Roller Length 1200mm Calender
Usage:
the calender is mainly used for cord, canvas and fabric frictioning cord single or double-coating with one time connectively as well as stock sheeting etc.
technial specification:
| Model | XY-3I 630 | XY-3I 1120A XY-3 1120A XY-3l1120A |
XY-3I 1400 | XY-3I 1200 XY-3I 1500 |
XY-3I 1730 | XY-3I 2130 |
| Roll diameter (mm) | 230 | 360 | 400 | 450 | 610 | 710 |
| Roll working length (mm) | 630 | 1120 | 1400 | 1200(1500) | 1730 | 2130 |
| Roll speed ratio | 1:01:01 1:1.42:1 |
1:01:01 0.733:1:1 0.733:1:0.733 |
1:01:01 1:1.383:1.383 1:1.383:1 |
1:01:01 1:1.5:1 |
1:01:01 1:1.4:1 |
1:01:01 1:1.48:1 |
| Middle-roll linear speed (m/min) | 7.97 | 7.0-21.06 | 8.8-26.39 | 8.36-25.08 | 5.4-54 | 8-50 |
| Adjusting nip range (mm) | 0-7 | 0-10 | 0-10 | 0-6 | 0-20 | 0-20 |
| Min.Calendering product thickness (mm) | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 | 0.15 |
| Calendering product width (mm) | 100-500 | 500-920 | 1200 | 1100(1400) | 1500 | 1900 |
| Motor power (kw) | 7.5 | 40/13.3 | 55/18.3 | 75/25 | 132 | 185 |
| Overall dimensions (mm) |
2570×740× 1500 |
5550×1640× 2120 |
6500×1500× 2440 |
7120(7420)×2200× 2900 |
7010×3950× 3730 |
7650×4560× 4080 |
| Weight (kg) | ~4200 | ~12750 | ~26000 | ~27000 | ~52000 | ~67000 |
|
Model Item |
XY-4I 630 XY-4L 630 XY-4630 |
XY-41120A | XY-41400 | XY -41500 | XY-41730 | XY-42130 | XY-42430 | |
| Roller dia | 230 | 360 | 400 | 450 | 610 | 710 | 810 | |
| Roller wording length | 630 | 1120 | 1400 | 1500 | 1730 | 2130 | 2430 | |
| Roller ratio | 1:1:1:1 | 0.73:1:1:0.73 | 1:1.38:1.38:1 | 1:1.5:1.5:1 |
1:1.4:1.4:1 1:1.4:1.4:1.4 |
1:1.5:1.5:1 | 1:1.5:1.5:1 | |
| Middle roll linear speed | r/min | 2.1-21 | 2-20.1 | 3-26.3 | 2.5-25 | 8-50 | 3-30 | 2-20 |
| Adjusting range | 0-10 | 0-10 | 0-10 | 0-6 | 20 | 0-20 | 0.5-25 | |
| Min.calendering product thickness | 0.2 | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 | ±0.1 | |
| Calendering product width | 100-500 | 500-920 | 1200 | 1250 | 1500 | 1900 | 2150 | |
| Motor power | kW | 15 | 55 | 75 | 110 | 160 | 185 | 280 |
|
Overall dimensions
|
L | 3300 | 6600 | 6500 | 6580 | 7010 | 9800 | |
| W | 940 | 1620 | 1970 | 2460 | 4150 | 4260 | ||
| H | 2350 | 2490 | 2740 | 2920 | 3730 | 5720 | ||
| About weight | t | 4.8 | 14.6 | 18.6 | 33.5 | 62 | 100 | 126 |
